极地航行船舶及海洋平台防冰和除冰技术研究进展

谢强 陈海龙 章继峰

谢强, 陈海龙, 章继峰. 极地航行船舶及海洋平台防冰和除冰技术研究进展[J]. 中国舰船研究, 2017, 12(1): 45-53. doi: 10.3969/j.issn.1673-3185.2017.01.008
引用本文: 谢强, 陈海龙, 章继峰. 极地航行船舶及海洋平台防冰和除冰技术研究进展[J]. 中国舰船研究, 2017, 12(1): 45-53. doi: 10.3969/j.issn.1673-3185.2017.01.008
Qiang XIE, Hailong CHEN, Jifeng ZHANG. Research progress of anti-icing/deicing technologies for polar ships and offshore platforms[J]. Chinese Journal of Ship Research, 2017, 12(1): 45-53. doi: 10.3969/j.issn.1673-3185.2017.01.008
Citation: Qiang XIE, Hailong CHEN, Jifeng ZHANG. Research progress of anti-icing/deicing technologies for polar ships and offshore platforms[J]. Chinese Journal of Ship Research, 2017, 12(1): 45-53. doi: 10.3969/j.issn.1673-3185.2017.01.008

极地航行船舶及海洋平台防冰和除冰技术研究进展

doi: 10.3969/j.issn.1673-3185.2017.01.008
基金项目:

国家自然科学基金资助项目 51379048

详细信息
    作者简介:

    谢强, 男, 1990年生, 博士生。研究方向:极地船舶与装备防冰和除冰技术。E-mail:455924666@qq.com

    陈海龙, 男, 1980年生, 博士。研究方向:极地大科学及项目管理

    通信作者:

    章继峰(通信作者), 男, 1976年生, 博士, 教授, 博士生导师。研究方向:极地船舶与装备防冰和除冰技术。E-mail:jfzhang@hrbeu.edu

  • 中图分类号: U674.21

Research progress of anti-icing/deicing technologies for polar ships and offshore platforms

  • 摘要: 极地具有气候环境极端恶劣、海气交换强烈、湿度很大等特点,在此航行(或冰区航行)的船舶和海洋平台结构表面极易形成覆冰,它不仅影响设备操作,更直接威胁到船舶和海洋平台的安全。对国内外极地航行船舶及海洋平台防冰和除冰技术的现状进行综述。首先,介绍覆冰对极地航行船舶及海洋平台不同部位的影响和危害程度。然后,归纳和分析国内外现有防冰和除冰方法与技术,包括电加热、红外线、超声导波等主动除冰方法,以及超疏水涂层、牺牲性涂层、水润滑涂层以及低交联度界面滑移涂层等被动除冰方法。最后,总结现有防冰和除冰技术在极地航行船舶及海洋平台上的适用性及优缺点,为极地航行船舶及海洋平台的防除冰设计提供参考。

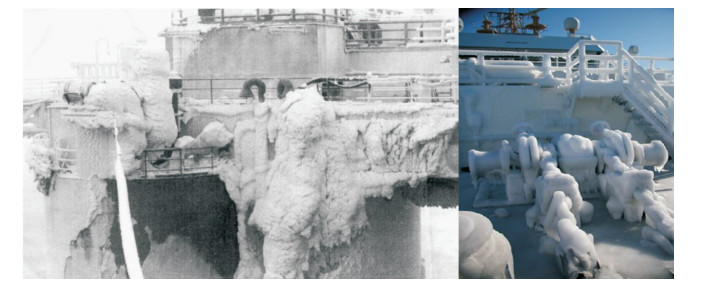

  • 图  1  海洋平台[12](左)及极地船舶[13](右)上的结冰

    Figure  1.  Ice accretion on offshore platforms[12](left) and polar ships[13](right)

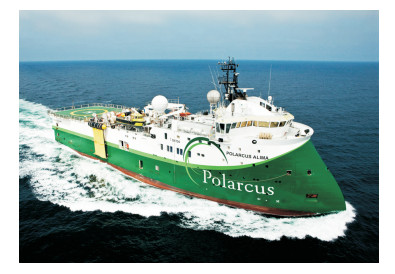

    图  2  X型船艏防冰设计的极地航行船舶[18]

    Figure  2.  Anti-icing of polar ship with X-bow design [18]

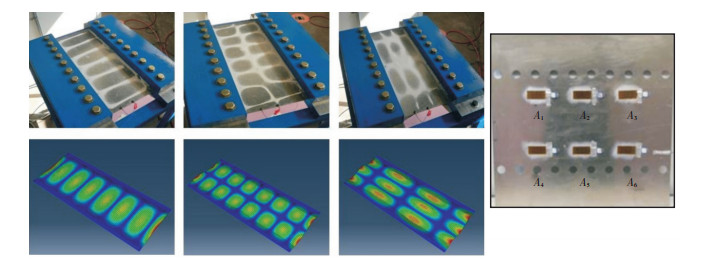

    图  3  基于超声导波除冰的模态控制实验[20]

    Figure  3.  Mode control experiment of deicing by ultrasonic guided wave method[20]

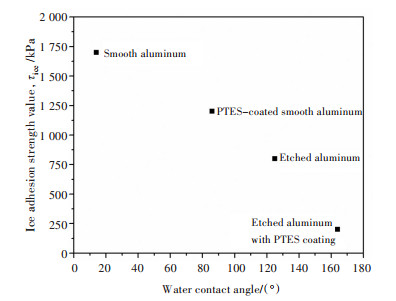

    图  4  不同疏水涂层的铝板在-10 ℃时的冰粘附强度[32]

    Figure  4.  Ice adhesion strength values of various aluminum plates with superhydrophobiccoatingattemperaturesbelow-10℃ [32]

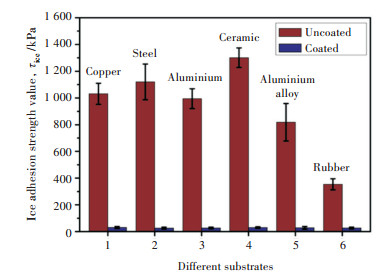

    图  5  各种表面涂覆防冰涂层前后在-15 ℃时的冰粘附强度比较[36]

    Figure  5.  Comparison of ice adhesion strength on different substrates before and after coated with the anti-icing coating at temperatures below -15 ℃[36]

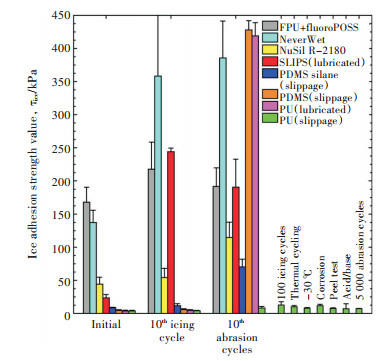

    图  6  低交联度界面滑移涂层与其他涂层冰粘附强度对比[37]

    Figure  6.  Comparison of ice adhesion strength of PU slippage coating with other ice-phobic surfaces[37]

    表  1  覆冰类型和海洋平台部位或功能对平台安全性的综合影响[12]

    Table  1.   Joint safety impacts by ice type and platform component or function [12]

    表  2  覆冰类型和船舶部位或功能对船舶的安全性综合影响[17]

    Table  2.   Joint safety impacts by ice type and ship component or function [17]
