基于强化学习的成品油船装载方案自主生成技术研究

尼洪涛; 周清基; 柴松; 齐鸣

doi:10.19693/j.issn.1673-3185.03474

基于强化学习的成品油船装载方案自主生成技术研究

doi: 10.19693/j.issn.1673-3185.03474

尼洪涛^1,,
周清基^2, ,,
柴松³,
齐鸣⁴

1.
苏州城市学院计算科学与人工智能学院，江苏苏州 215104
2.
天津大学海洋科学与技术学院，天津 300072
3.
苏州载诺信息科技有限公司，江苏苏州 215008
4.
上海中船船舶设计技术国家工程研究中心有限公司，上海 201114

基金项目: 天津市交通运输科技发展计划资助项目（G2022-48）

详细信息

作者简介:
尼洪涛，男，1982年生，硕士，高级工程师。研究方向：企业级应用开发，人工智能。E-mail：hongtao.ni@szcu.edu.cn

周清基，男，1986年生，博士，副教授。研究方向：海事航运数据分析和安全。E-mail：zqj@tju.edu.cn

柴松，男，1985年生，博士

通信作者:
周清基

中图分类号: U674.13
计量
- 文章访问数: 68
- HTML全文浏览量: 11
- PDF下载量: 0
- 被引次数: 0
出版历程
- 收稿日期: 2023-07-26
- 修回日期: 2023-11-13
- 网络出版日期: 2023-11-17

Reinforcement learning-based autonomous generation technology of loading scheme for product oil tanker

NI Hongtao^1
,,
ZHOU Qingji^{2
, ,},
CHAI Song³,
QI Ming⁴

1.
Computing Science and Artificial Intelligence College, Suzhou City University, Suzhou 215104, China
2.
School of Marine Science and Technology, Tianjin University, Tianjin 300072, China
3.
Suzhou Zainuo Information Technology Co., Ltd., Suzhou 215008, China
4.
Shanghai Zhongchuan SDT-NERC Co., Ltd., Shanghai 201114, China

基于强化学习的成品油船装载方案自主生成技术研究由尼洪涛，等创作，采用知识共享署名4.0国际许可协议进行许可。

摘要

摘要: 目的旨在基于强化学习方法研究液货舱装载方案自主生成技术。方法以实际运营的成品油船载货量作为输入，以货舱及压载舱的装载率为目标，基于Unity ML-Agents构建智能体与环境，通过PyTorch框架对智能体进行训练，提出一种综合考虑装载时间与纵倾变化幅度的奖励函数计算方法，并以算例分析来验证所提方法的有效性。结果结果显示，所训练的智能体能够学习良好的策略，并实现液货舱装载方案的自主生成。结论研究结果表明，将强化学习用于解决多目标条件下的液货舱装载方案自主生成是合理可行的。
- 自动化装卸 /
- 液货舱 /
- 机器学习 /
- 方案优化
Abstract: Objectives This paper aims to study the automatic generation technology of loading and unloading schemes for the liquid cargo tank of oil tanker based on reinforcement learning. Methods Using the cargo capacity of an actual operating oil tanker as input and the loading rates of the cargo tank and ballast water tank as the targets, an intelligent agent and environment were built based on Unity ML-Agents. The agent was trained using the PyTorch framework, and a reward function calculation method that comprehensively considers the loading time and the change in the trim amplitude was proposed. Finally, the example analysis were carried out to validate the validity of the proposed method. Results The results show that, the trained agent can learn good strategies and achieve autonomous generation of liquid cargo tank loading schemes. Conclusions The study showed that applying reinforcement learning to solve the problem of autonomous generation of liquid cargo tank loading schemes under multi-objective conditions is reasonable and feasible.
- automatic loading and unloading /
- liquid cargo tank /
- machine learning /
- scheme optimization

HTML全文

图 1 系统原理示意图

Figure 1. System schematic diagram

下载: 全尺寸图片幻灯片

图 2 成品油船总布置图

Figure 2. General plan of product oil tanker

下载: 全尺寸图片幻灯片

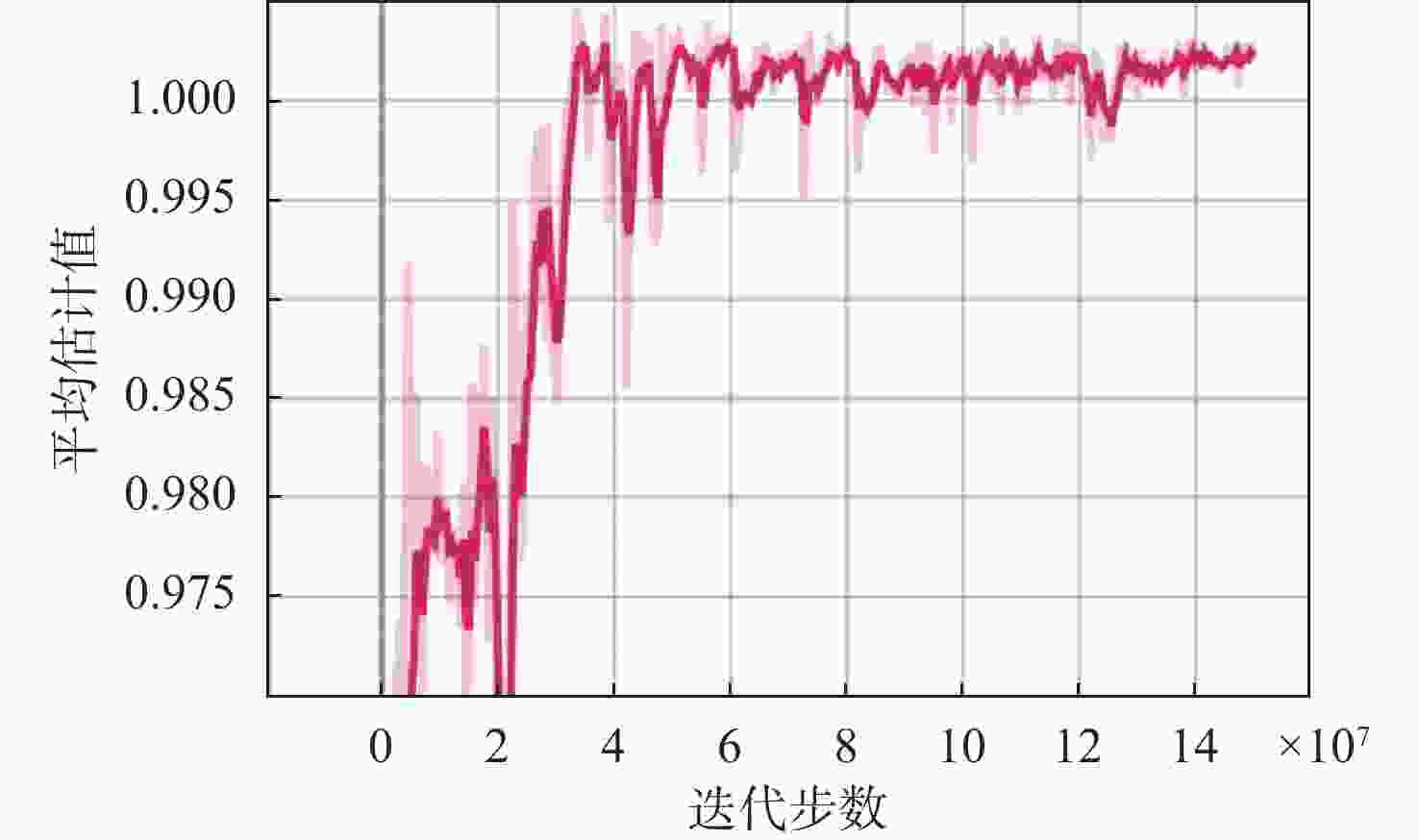

图 3 累计奖励平均估计值曲线

Figure 3. Average cumulative reward curve for estimation

下载: 全尺寸图片幻灯片

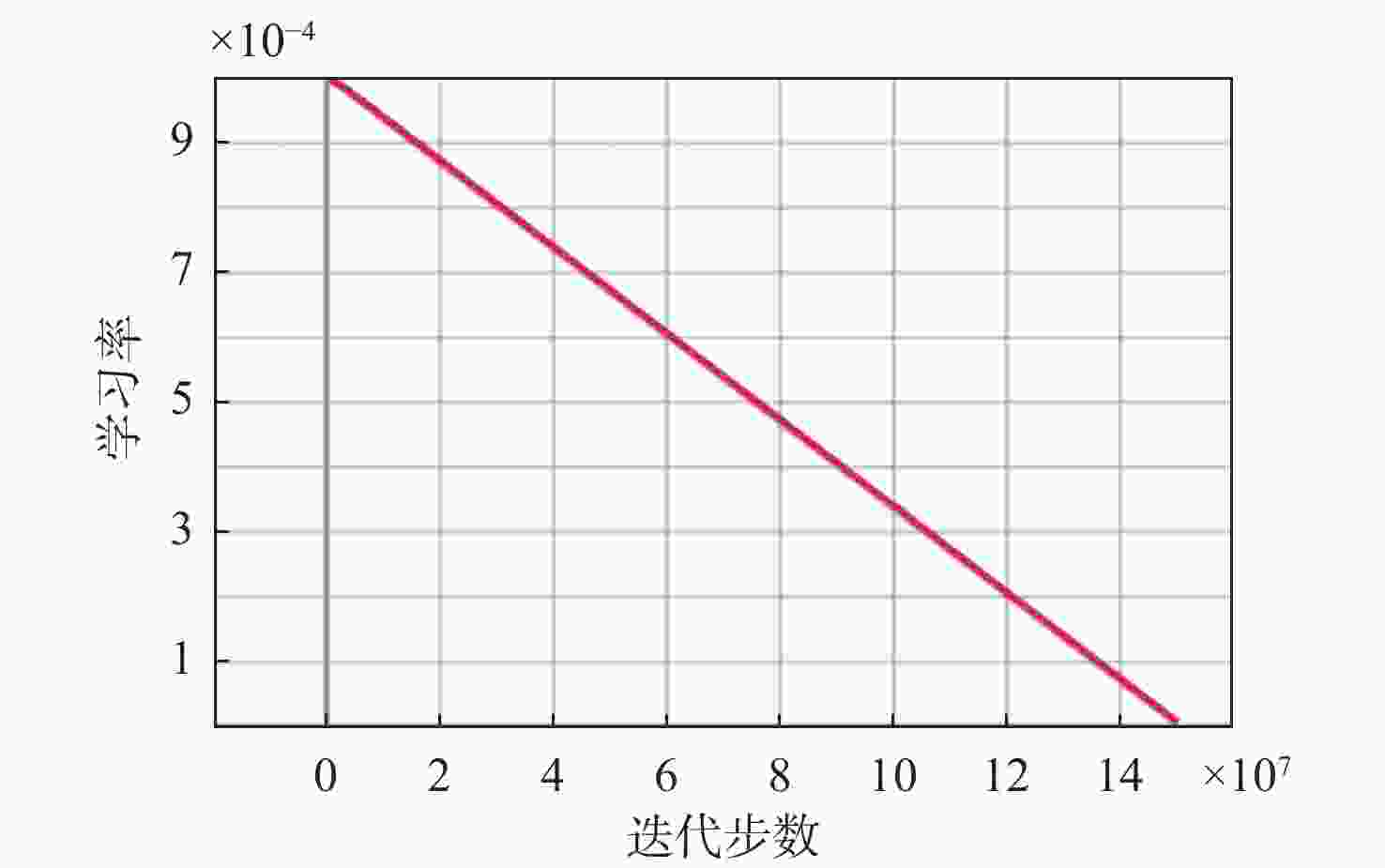

图 4 学习率

Figure 4. Learning rate

下载: 全尺寸图片幻灯片

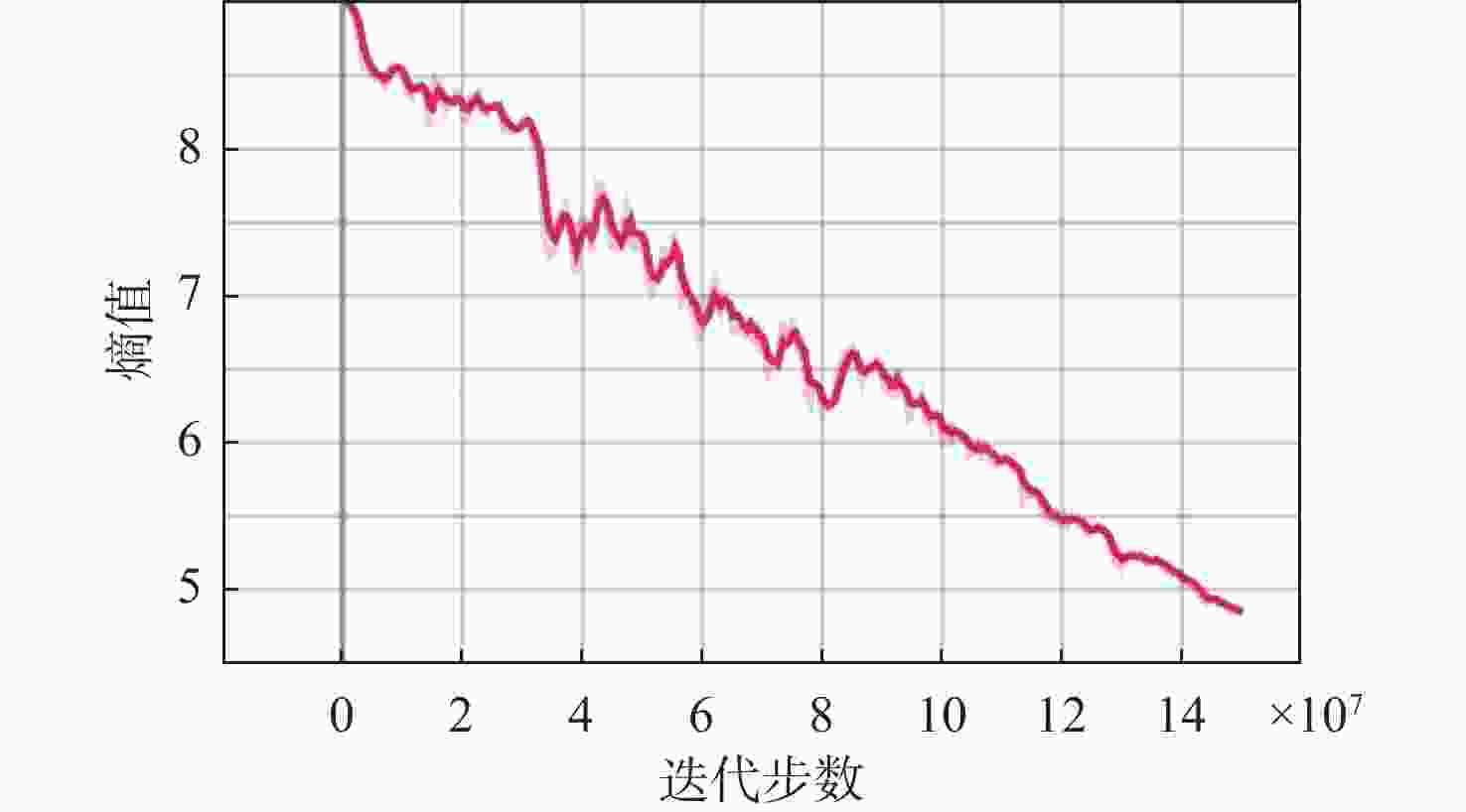

图 5 熵

Figure 5. Entropy

下载: 全尺寸图片幻灯片

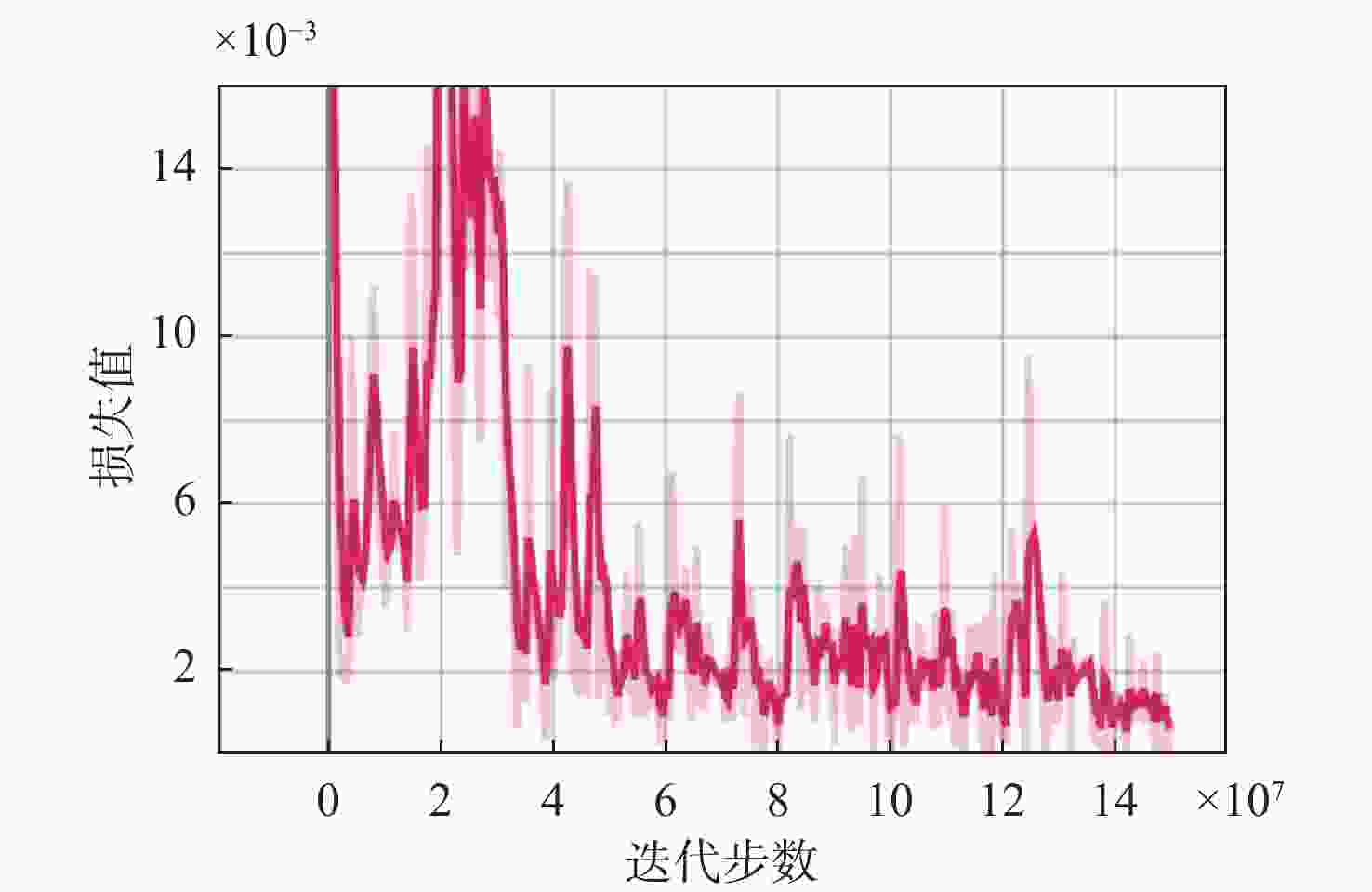

图 6 价值损失曲线

Figure 6. Value loss curve

下载: 全尺寸图片幻灯片

图 7 策略损失曲线

Figure 7. Policy loss curve

下载: 全尺寸图片幻灯片

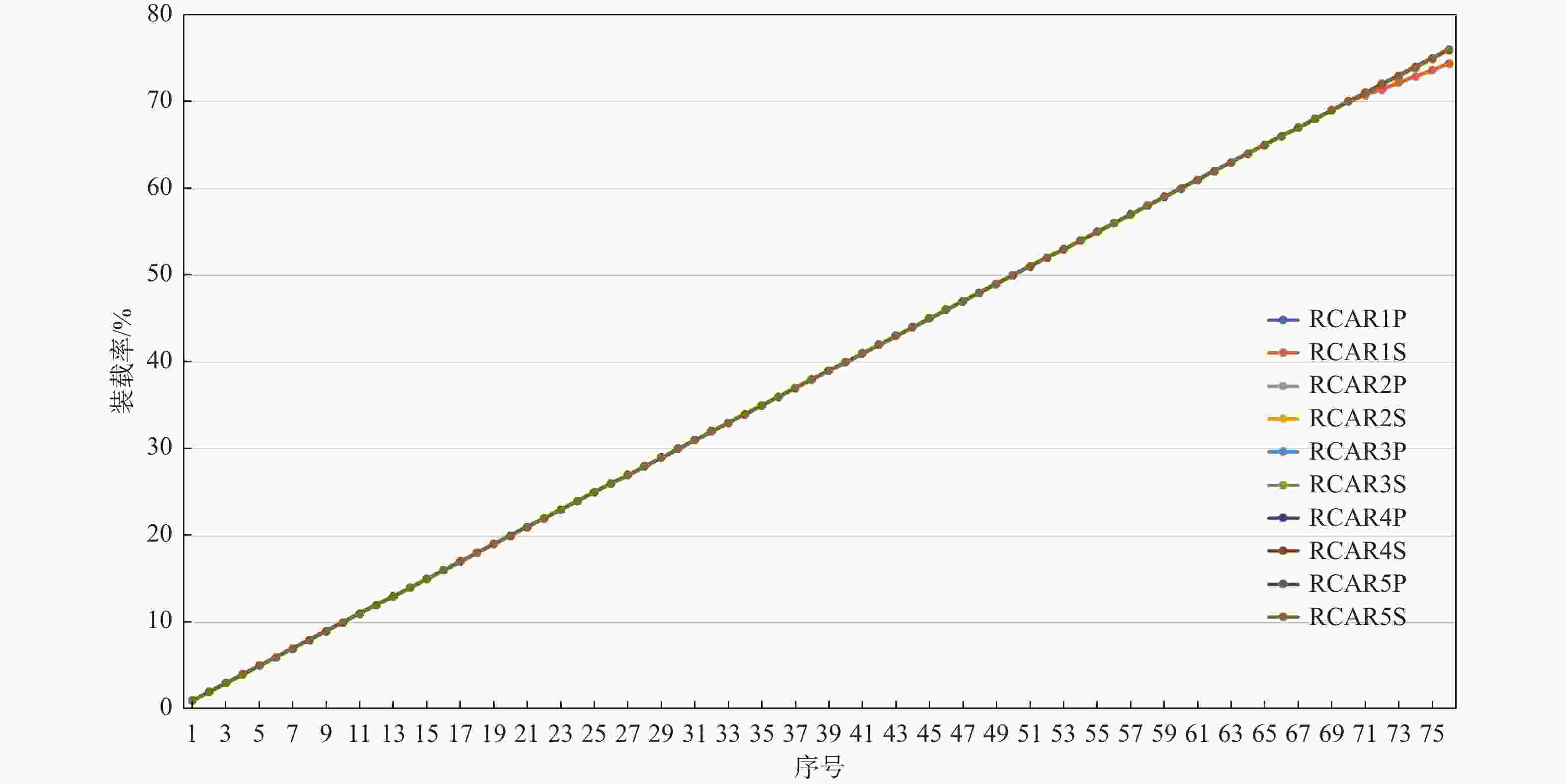

图 8 算例1货舱装载方案

Figure 8. Cargo tank loading scheme of Example 1

下载: 全尺寸图片幻灯片

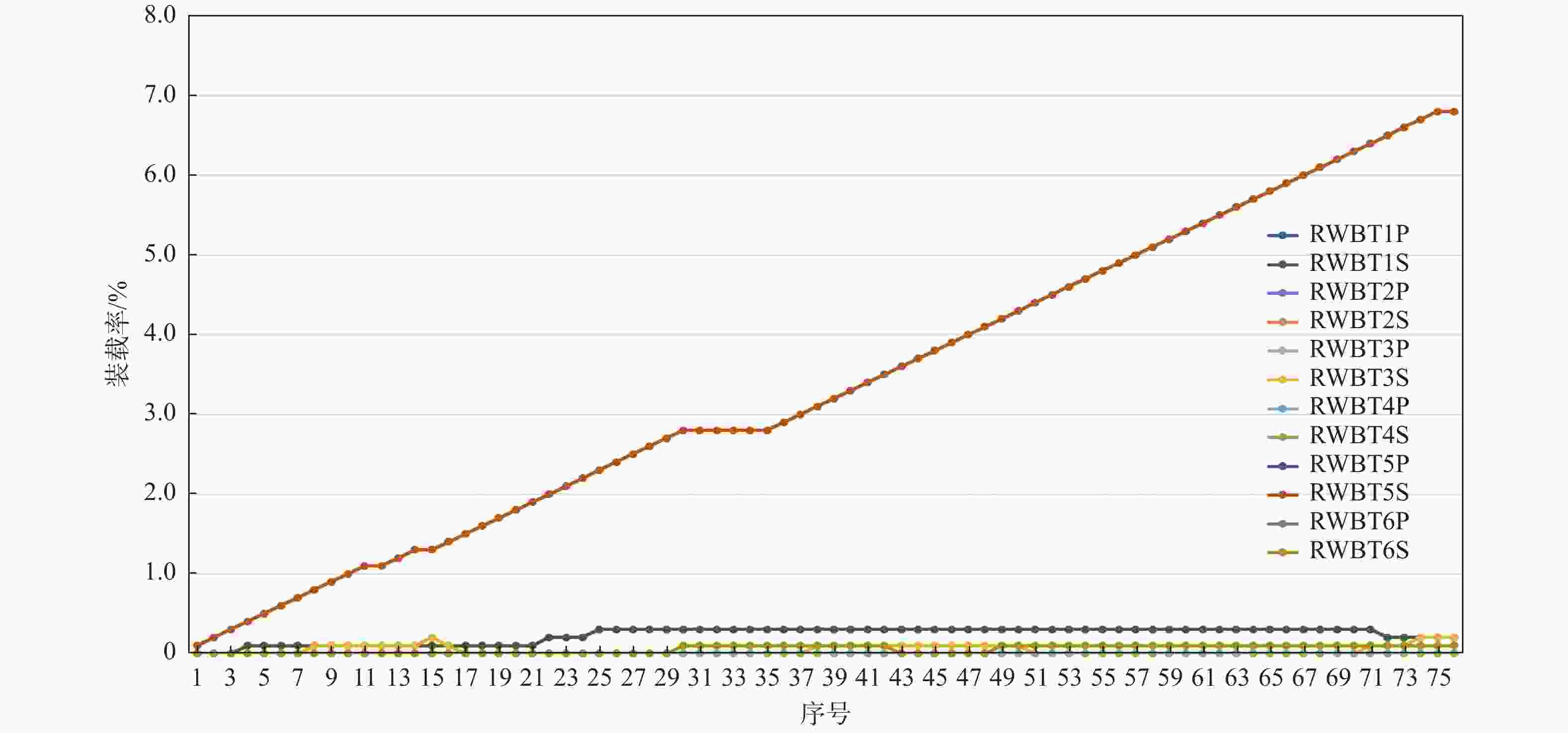

图 9 算例1压载水舱装载方案

Figure 9. Ballast water tank loading scheme of Example 1

下载: 全尺寸图片幻灯片

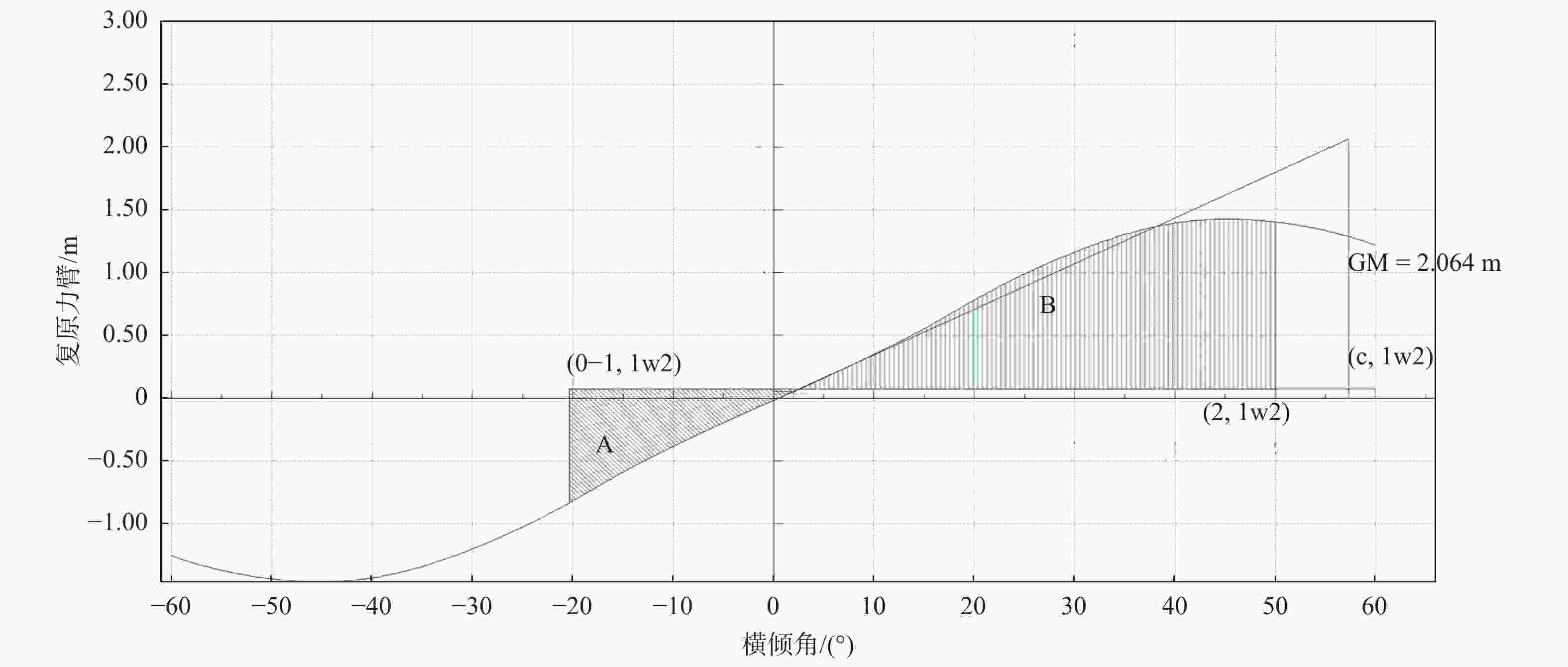

图 10 算例1稳性曲线

Figure 10. Stability curve for Example 1

下载: 全尺寸图片幻灯片

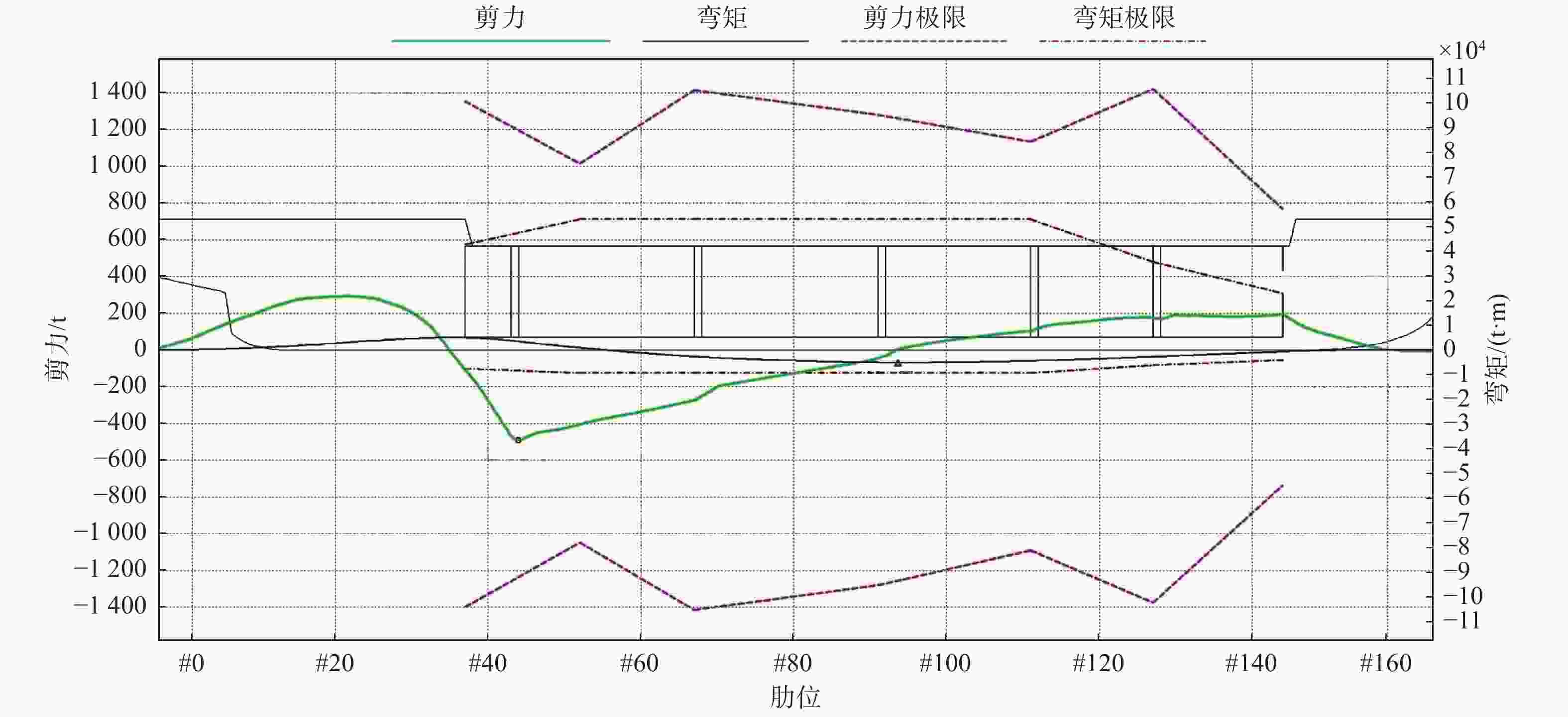

图 11 算例1强度曲线

Figure 11. Strength curves for Example 1

下载: 全尺寸图片幻灯片

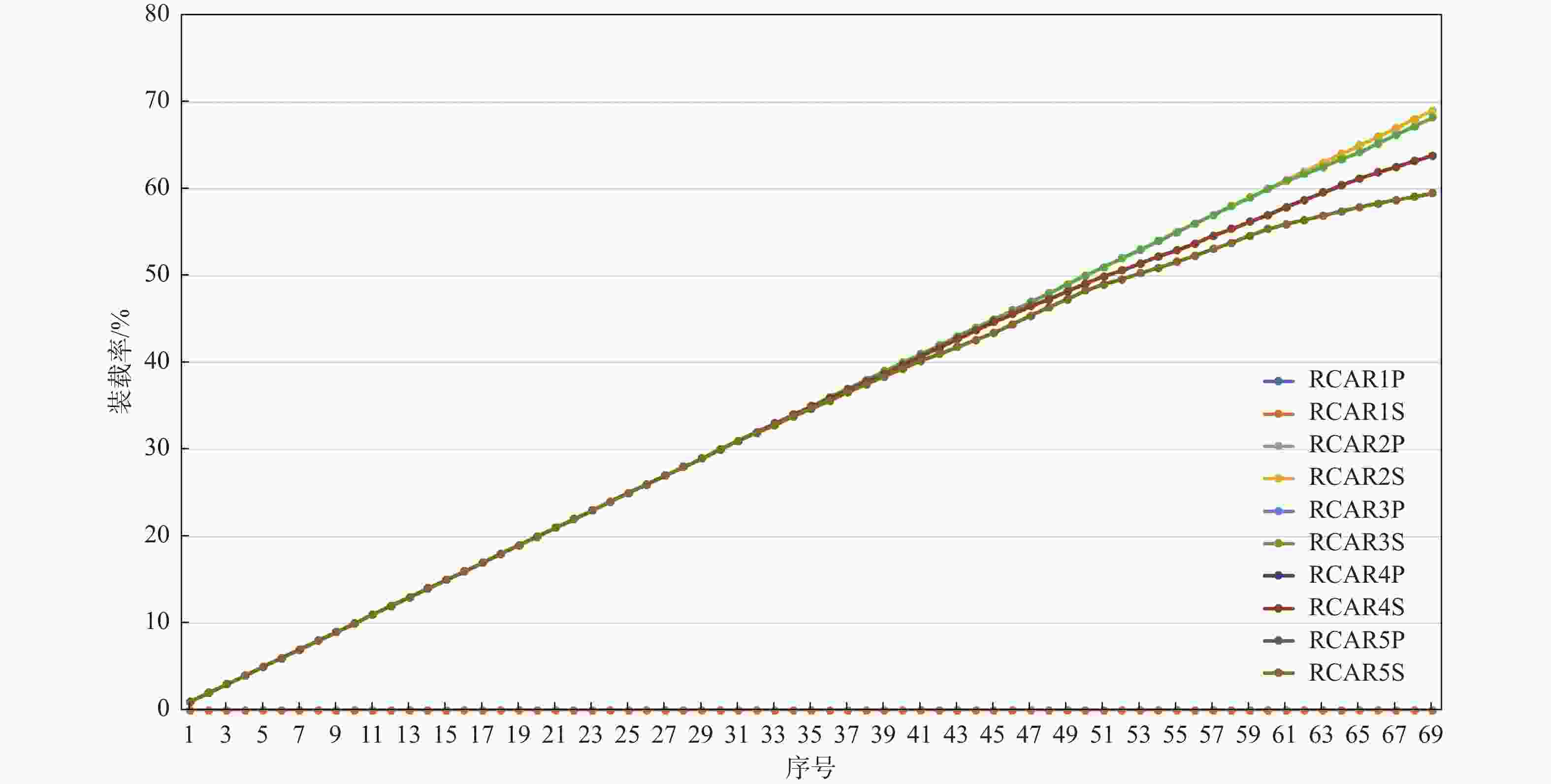

图 12 算例2货舱装载方案

Figure 12. Cargo tank loading scheme for Example 2

下载: 全尺寸图片幻灯片

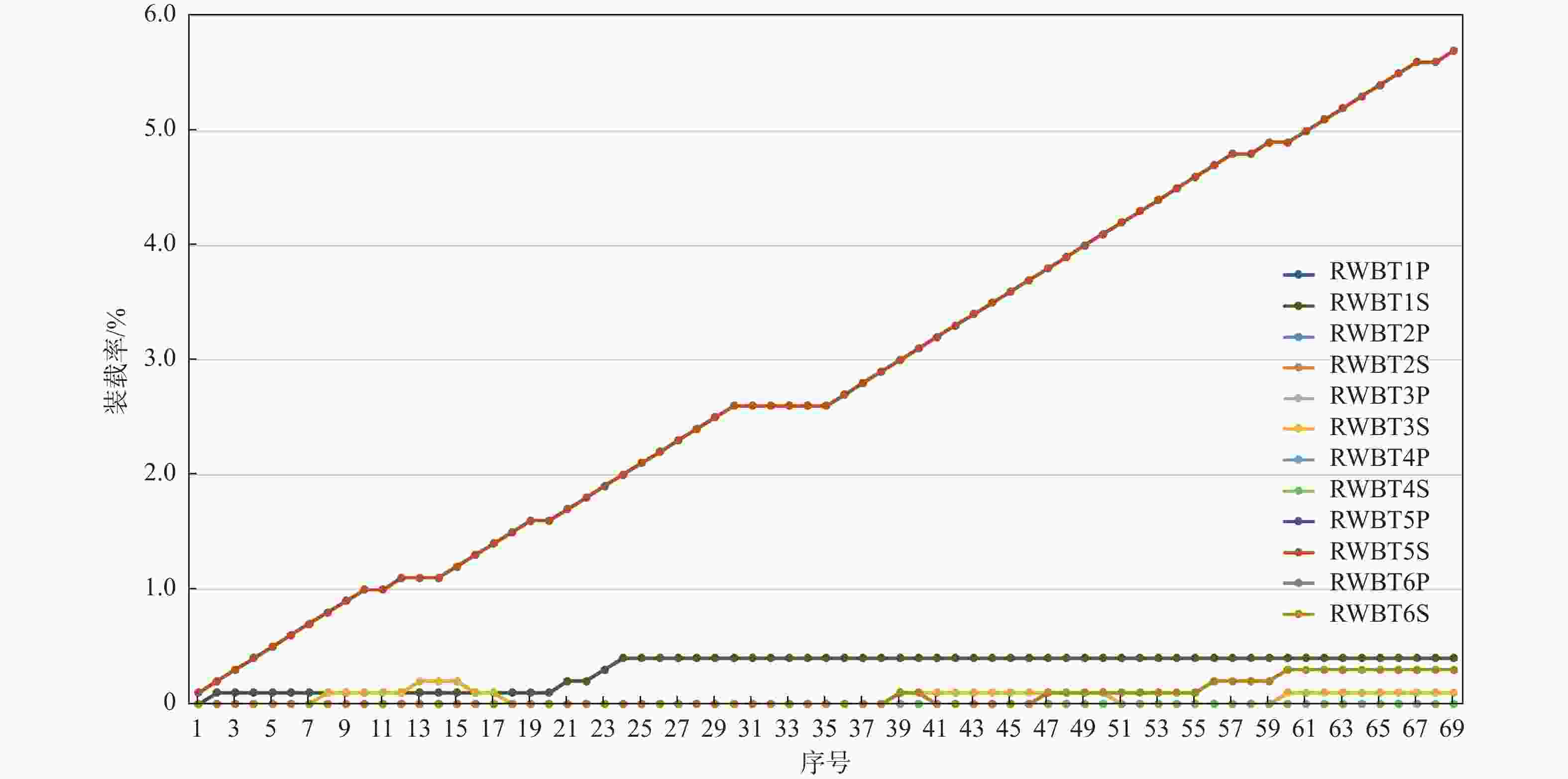

图 13 算例2压载水舱装载方案

Figure 13. Ballast water tank loading scheme for Example 2

下载: 全尺寸图片幻灯片

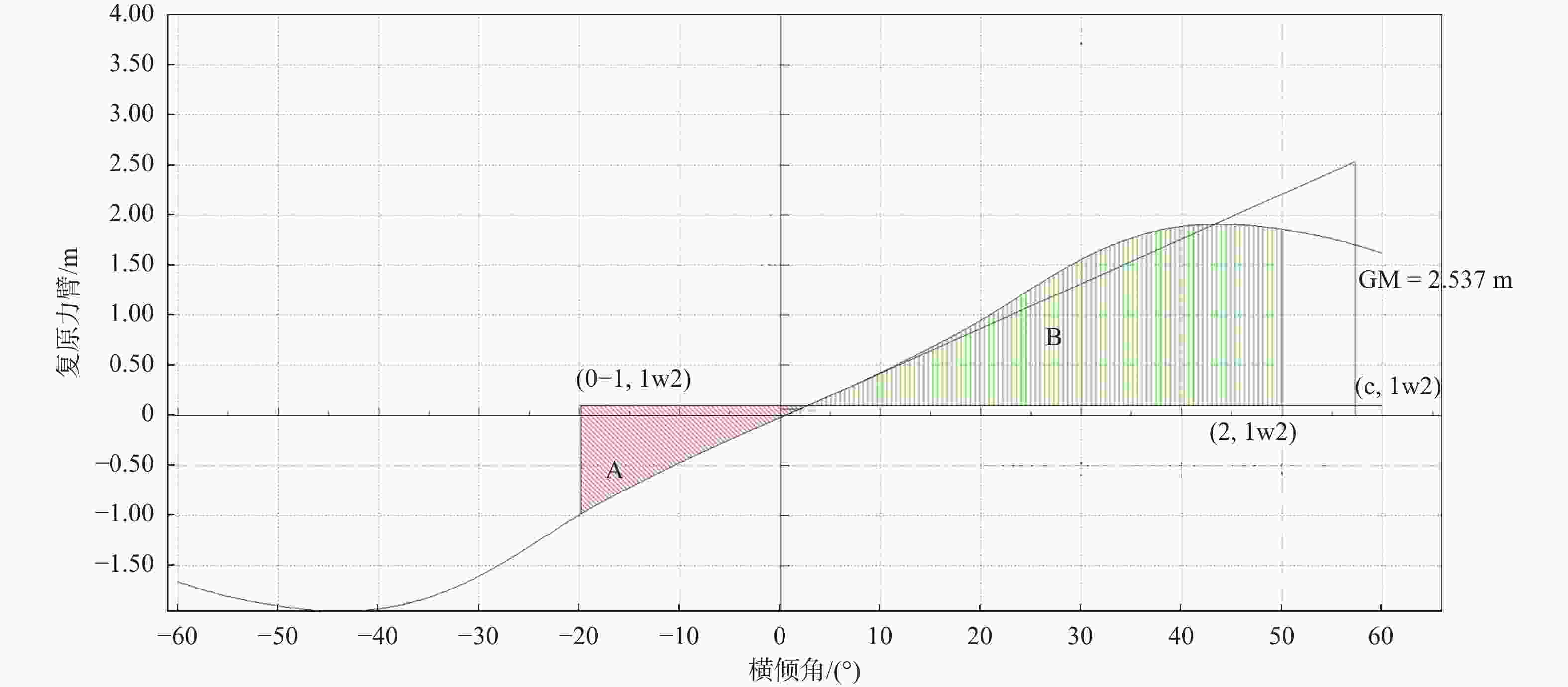

图 14 算例2稳性曲线

Figure 14. Stability curve for Example 2

下载: 全尺寸图片幻灯片

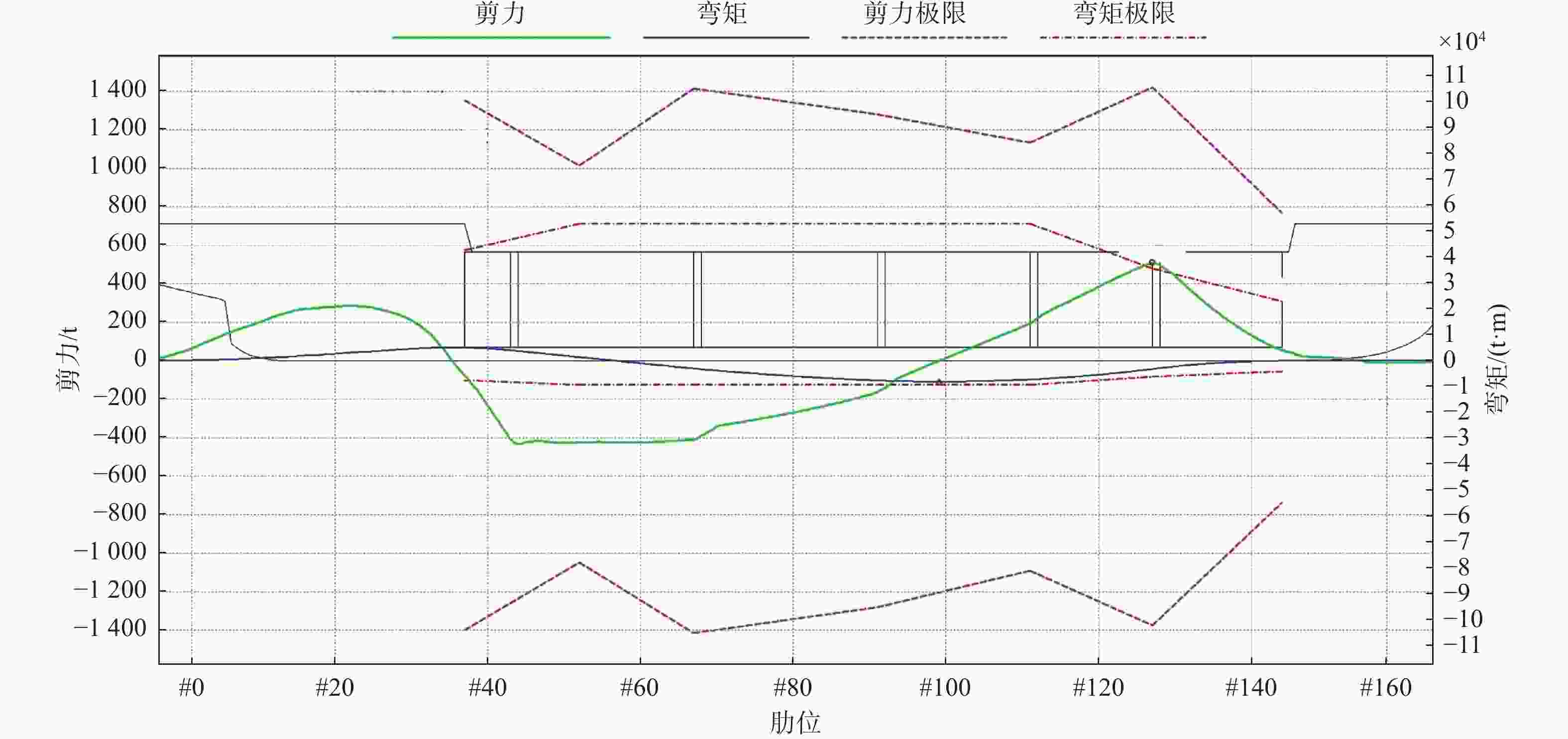

图 15 算例2强度曲线

Figure 15. Strength curves for Example 2

下载: 全尺寸图片幻灯片

　　算法：策略学习的伪代码

　　输入：训练任务$ O\left(T\right) $，最大迭代次数集合K，观察的轨迹数N，训练模型的超参数

　　输出：策略$ {\pi }_{\theta } $

　　随机生成初始参数$ \theta $

　　while　未达到最大迭代次数　do

　foreach　$ {K}_{\mathit{i}},{O}_{i}\left(T\right) $属于$ (K,O(T\left)\right) $　do

　　while　$ k\le {K}_{i} $　do

　　　抽取一批任务$ T\in {O}_{i}\left(T\right) $

　　　for　所有T　do

　　　　　根据策略$ {\pi }_{\theta } $,抽取N条轨迹

　　　　　计算关于$ \theta $的损失函数的梯度

　　　end

　　　根据计算出的梯度更新$ \theta $

　　end

下载: 导出CSV

表 1 空船重心

Table 1. Values for the gravity center of light ship

参数	数值
重心距舯/m	44.999
重心高/m	8.017
重心距中/m	0

下载: 导出CSV

表 2 舱室参数

Table 2. Tank parameters

舱室编号	体积/m³	重心距舯/m	重心高/m	重心距中/m
RCAR1P	548.24	93.648	6.124	−2.713
RCAR1S	542.59	93.647	6.127	2.738
RCAR2P	765.22	82.614	5.938	−3.870
RCAR2S	768.29	82.617	5.937	3.848
RCAR3P	1028.45	70.144	5.848	−4.101
RCAR3S	1025.32	70.127	5.848	4.101
RCAR4P	1247.74	54.774	5.821	−4.146
RCAR4S	1249.13	54.774	5.821	4.146
RCAR5P	1213.90	38.047	5.900	−4.045
RCAR5S	1210.20	38.047	5.900	4.045
RWBT1P	318.58	95.052	4.595	−4.901
RWBT1S	328.78	95.052	4.467	4.743
RWBT2P	258.15	83.259	3.399	−6.606
RWBT2S	268.06	83.254	3.298	6.363
RWBT3P	304.71	70.608	2.983	−6.731
RWBT3S	317.27	70.604	2.892	6.468
RWBT4P	352.41	55.100	2.961	−6.682
RWBT4S	367.35	55.100	2.868	6.412
RWBT5P	246.90	41.029	2.984	−6.733
RWBT5S	256.82	41.032	2.894	6.473
RWBT6P	228.11	30.246	3.275	−6.526
RWBT6S	237.38	30.318	3.146	6.301

下载: 导出CSV

表 3 RCAR1P部分舱容表

Table 3. Summary of partial tank capacities of RCAR1P

装载率/%	体积/m³	重心距舯/m	重心高/m	重心距中/m	惯性矩/m⁴
0.0	0.00	94.171	1.301	−0.587	3.93
0.6	3.26	93.199	1.352	−1.547	43.54
1.2	6.84	93.197	1.404	−1.613	49.25
1.9	10.63	93.215	1.456	−1.664	56.27
2.7	14.62	93.235	1.509	−1.712	63.87
3.4	18.82	93.256	1.563	−1.760	72.08
4.2	23.22	93.276	1.617	−1.808	80.93
5.1	27.82	93.295	1.672	−1.856	90.02
10.8	59.47	93.409	2.012	−2.136	143.87
20.3	111.23	93.489	2.496	−2.340	152.18
29.9	164.08	93.523	2.965	−2.432	160.86
39.8	218.04	93.543	3.432	−2.493	169.91
49.8	273.09	93.558	3.899	−2.541	179.35
60.1	329.25	93.571	4.369	−2.582	190.00
70.6	387.19	93.585	4.845	−2.624	208.36
80.4	440.56	93.601	5.276	−2.665	226.04
90.3	494.91	93.620	5.707	−2.702	217.93
97.7	535.38	93.638	6.024	−2.722	207.65
98.8	541.70	93.642	6.073	−2.722	120.97
99.7	546.49	93.646	6.111	−2.717	42.29
100.0	548.24	93.648	6.124	−2.713	21.11

下载: 导出CSV

表 4 模型配置与超参数

Table 4. Model configuration parameters and hyper-parameters

参数	数值
batch_size	2 048
buffer_size	20 480
learning_rate	0.001
learning_rate_schedule	linear
beta	0.0015
epsilon	0.18
lambd	0.90
num_epoch	5
hidden_units	256
num_layers	3
gamma	0.99
strength	1.0
time_horizon	256
max_steps	1.5×10⁷
注：参数的具体描述和取值范围，可参见https://unity-technologies.github.io/ml-agents/Training-Configuration-File/

下载: 导出CSV

表 5 两个算例得到的实际装载重量

Table 5. Statistics of actual loaded weight for the two examples

	目标重量/t	实际重量/t	相对误差/%
算例1	5 180	5238.946	1.125
算例2	3 950	3955.778	0.146

下载: 导出CSV

表 6 两个算例得到的相邻步骤间的纵倾差值

Table 6. Difference of trim value between adjacent steps for the two examples

	步骤数	差值平均值	差值标准差
算例1	76	0.037	0.002
算例2	69	0.015	0.007

下载: 导出CSV
