基于改进傅里叶模态分解和频带熵的滚动轴承故障诊断方法

刘俊锋 俞翔 万海波

刘俊锋, 俞翔, 万海波. 基于改进傅里叶模态分解和频带熵的滚动轴承故障诊断方法[J]. 中国舰船研究, 2022, 17(2): 190–197 doi: 10.19693/j.issn.1673-3185.02359
引用本文: 刘俊锋, 俞翔, 万海波. 基于改进傅里叶模态分解和频带熵的滚动轴承故障诊断方法[J]. 中国舰船研究, 2022, 17(2): 190–197 doi: 10.19693/j.issn.1673-3185.02359
LIU J F, YU X, WAN H B. Rolling bearing fault diagnosis method based on modified fourier mode decomposition and band entropy[J]. Chinese Journal of Ship Research, 2022, 17(2): 190–197 doi: 10.19693/j.issn.1673-3185.02359
Citation: LIU J F, YU X, WAN H B. Rolling bearing fault diagnosis method based on modified fourier mode decomposition and band entropy[J]. Chinese Journal of Ship Research, 2022, 17(2): 190–197 doi: 10.19693/j.issn.1673-3185.02359

基于改进傅里叶模态分解和频带熵的滚动轴承故障诊断方法

doi: 10.19693/j.issn.1673-3185.02359
基金项目: 国家自然科学基金资助项目(51679245)
详细信息
    作者简介:

    刘俊锋,男,1997年生,硕士生。研究方向:机械故障诊断。E-mail:228302204@qq.com

    俞翔,男,1978年生,博士,副教授。研究方向:船舶工业技术,武器工业与军事技术,工业通用技术及设备。E-mail:yuxiang898@sina.com

    万海波,男,1987年生,博士,讲师。研究方向:工业通用技术及设备,船舶工业技术。E-mail:general3000@126.com

    通信作者:

    俞翔

  • 中图分类号: U664.21;TH133.33

Rolling bearing fault diagnosis method based on modified fourier mode decomposition and band entropy

知识共享许可协议
基于改进傅里叶模态分解和频带熵的滚动轴承故障诊断方法刘俊锋,等创作,采用知识共享署名4.0国际许可协议进行许可。
  • 摘要:   目的  针对多分量、强背景噪声下滚动轴承故障特征提取困难的问题,提出一种将改进傅里叶模态分解(MFMD)和频带熵(FBE)分析相结合的滚动轴承故障特征提取方法。针对傅里叶分解(FDM)在强背景噪声下边界频率偏移和过分解等问题,提出频带熵和包络谱相结合的敏感频带和敏感模态分量选取方法。  方法  首先,通过FBE分析选取频带熵区域的极小值,将其作为敏感频带的中心频率并确定敏感频带边界;然后,在敏感频带区间内对信号进行带限傅里叶模态分解,从而获得若干个相互正交的傅里叶本征模态函数(FIMF)及其边际希尔伯特谱;其次,根据FIMFs与原信号频带熵的区域从属关系,选取可以反映故障特征的敏感FIMFs;最后,对所选取的FIMFs进行包络谱分析并提取故障特征。  结果  轴承仿真和实验结果表明,该方法可以实现轴承故障的精确诊断。  结论  研究成果可为滚动轴承的健康状态评估提供参考。

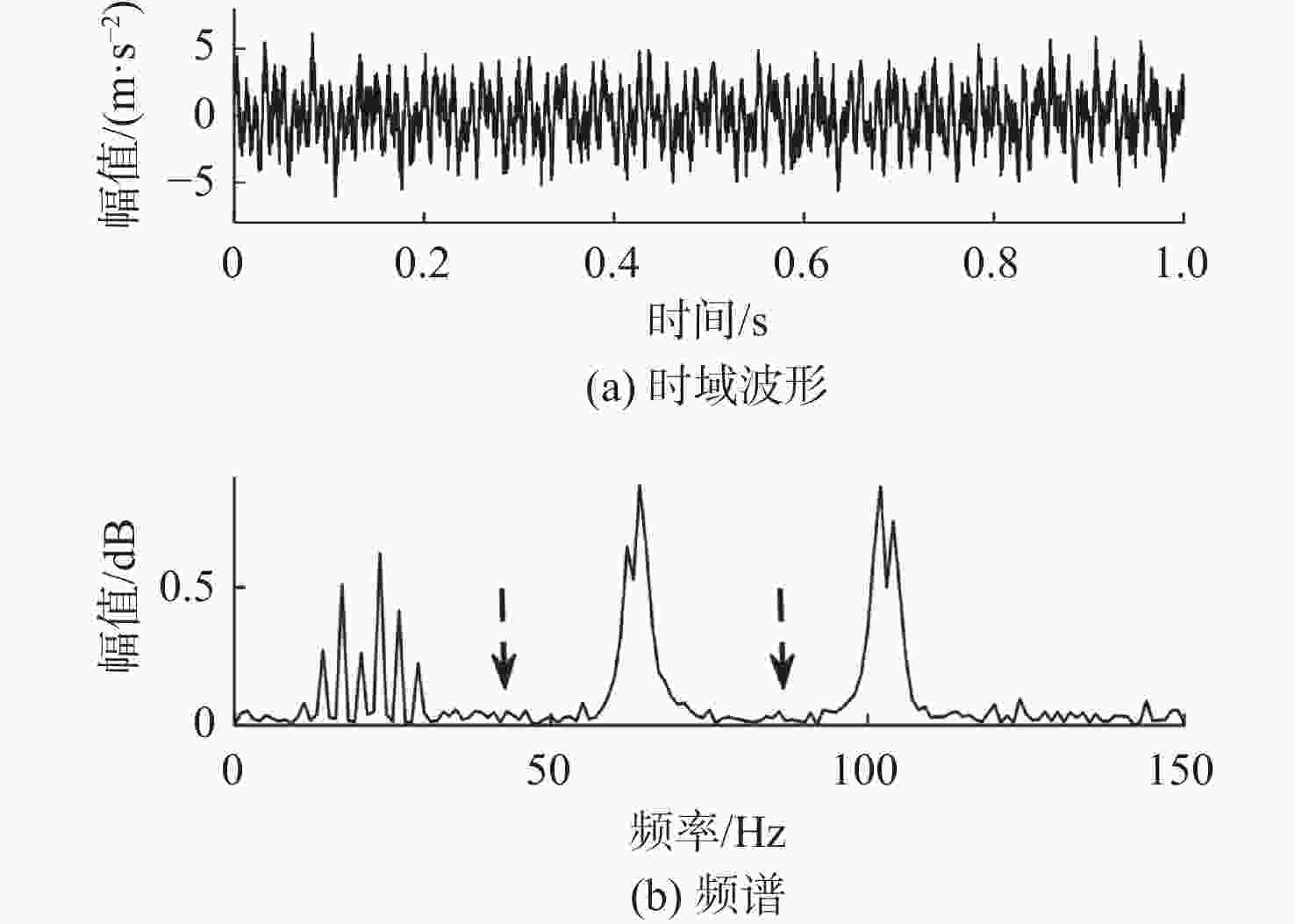

  • 图  1  模拟信号的时域波形与频谱

    Figure  1.  Time domain waveform and spectrum of analog signal

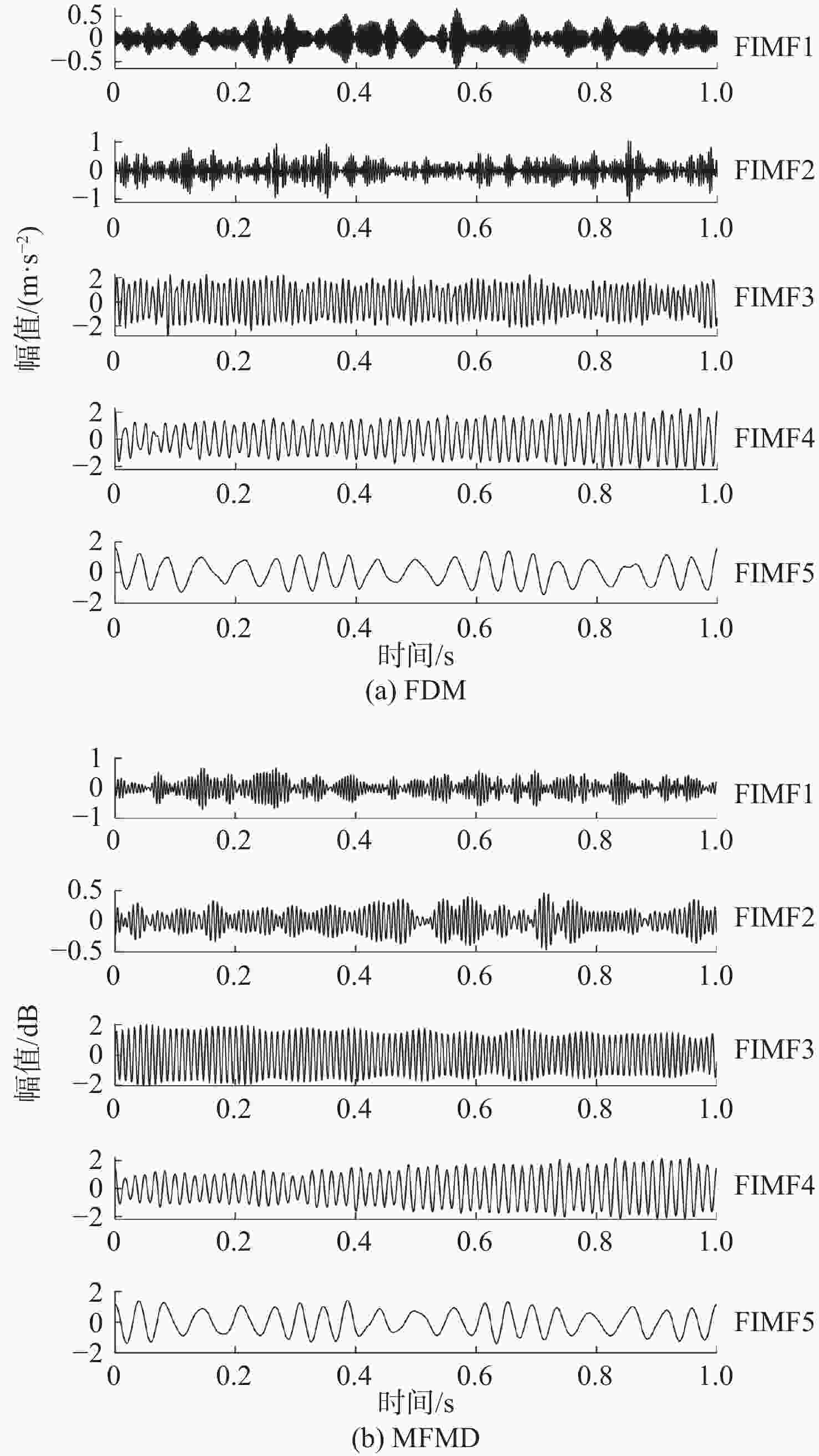

    图  2  FDM和MFMD方法的信号分解结果

    Figure  2.  Signal decomposition results of FDM and MFMD methods

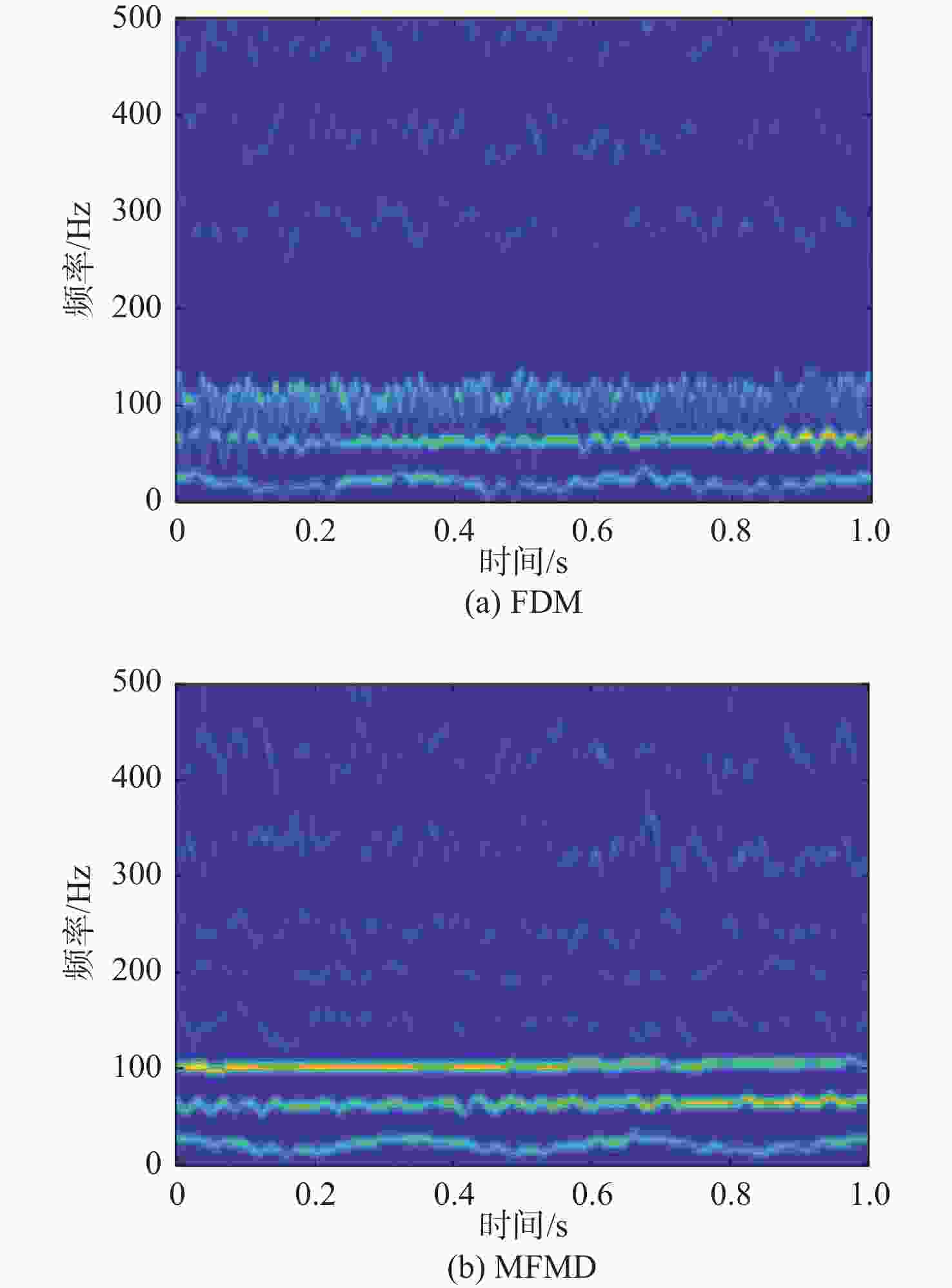

    图  3  模拟信号的时频分布

    Figure  3.  Time-frequency distribution of analog signals

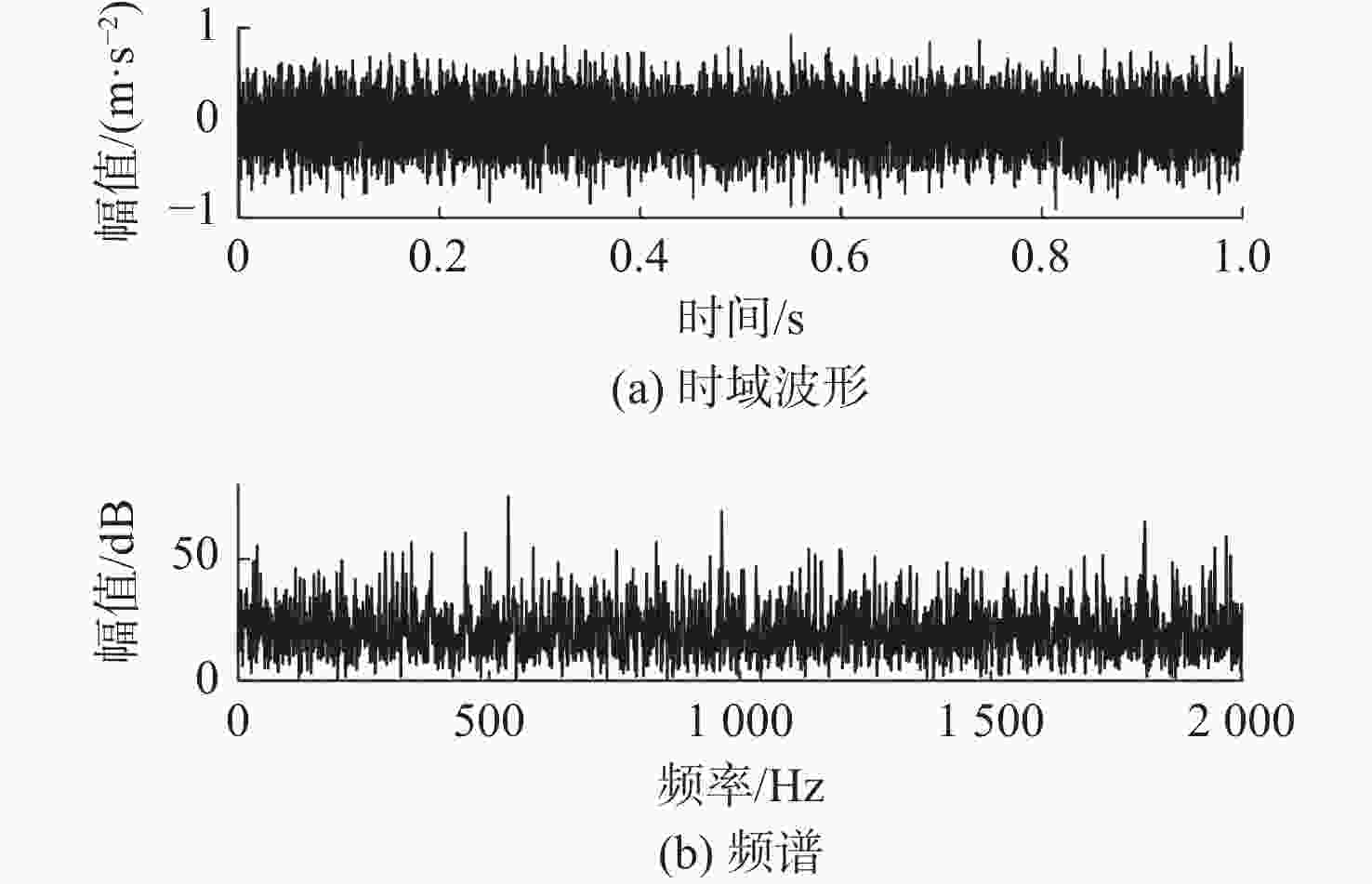

    图  4  轴承故障仿真信号的时域波形与频谱

    Figure  4.  Time domain waveform and spectrum of bearing fault simulation signal

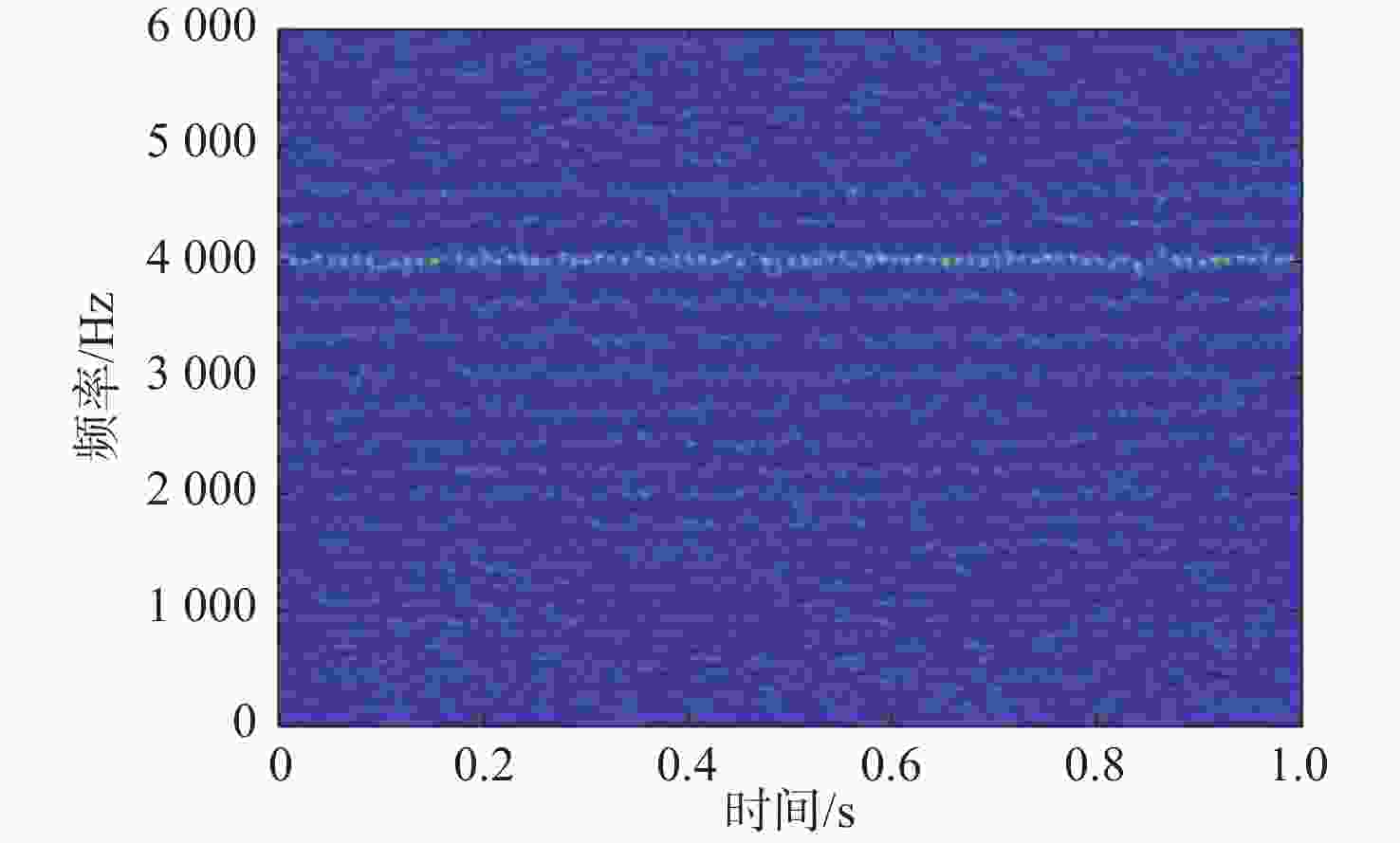

    图  5  轴承故障仿真信号的时频分布

    Figure  5.  Time-frequency distribution of bearing fault simulation signal

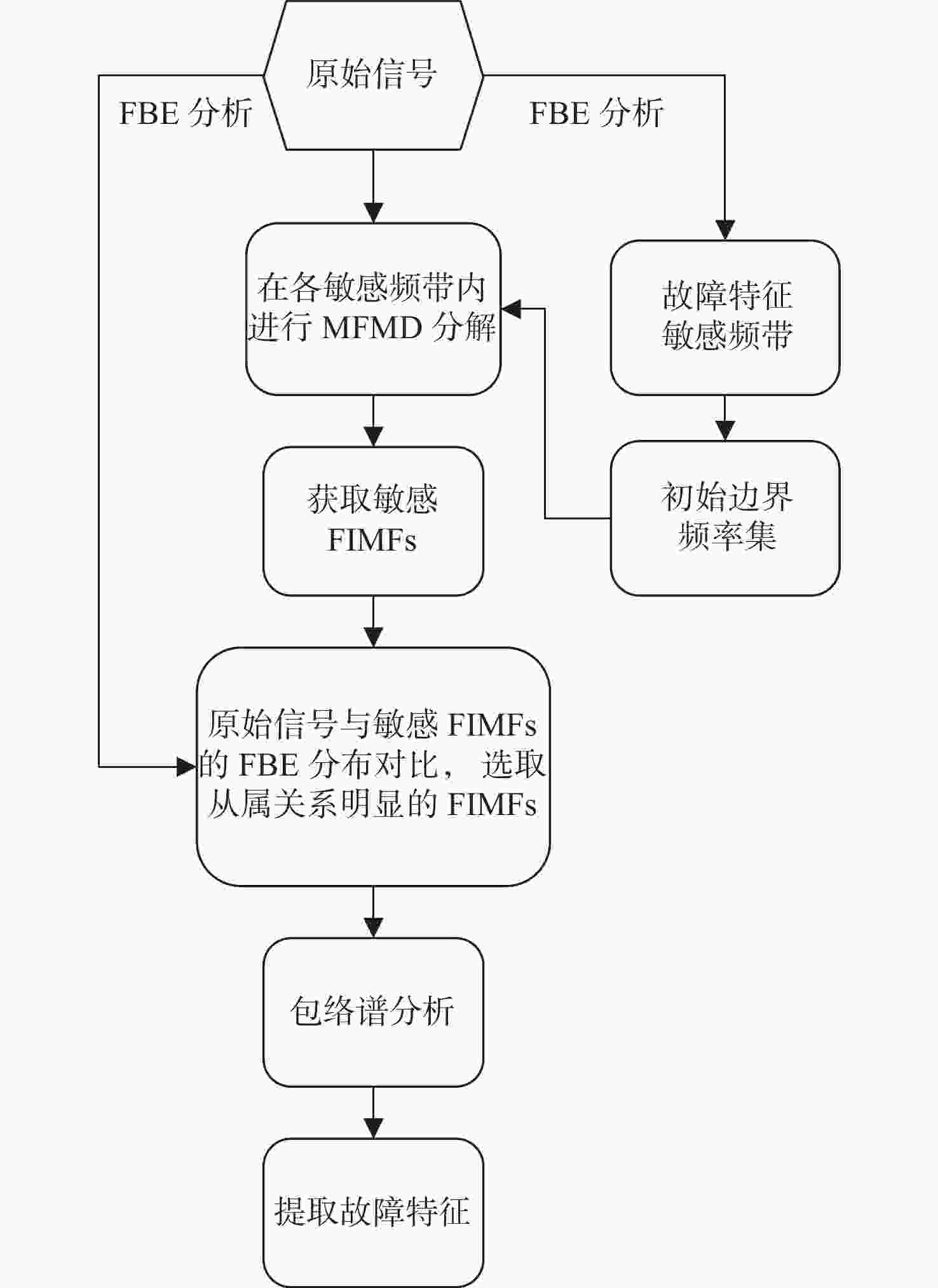

    图  6  故障诊断流程

    Figure  6.  Fault diagnosis process

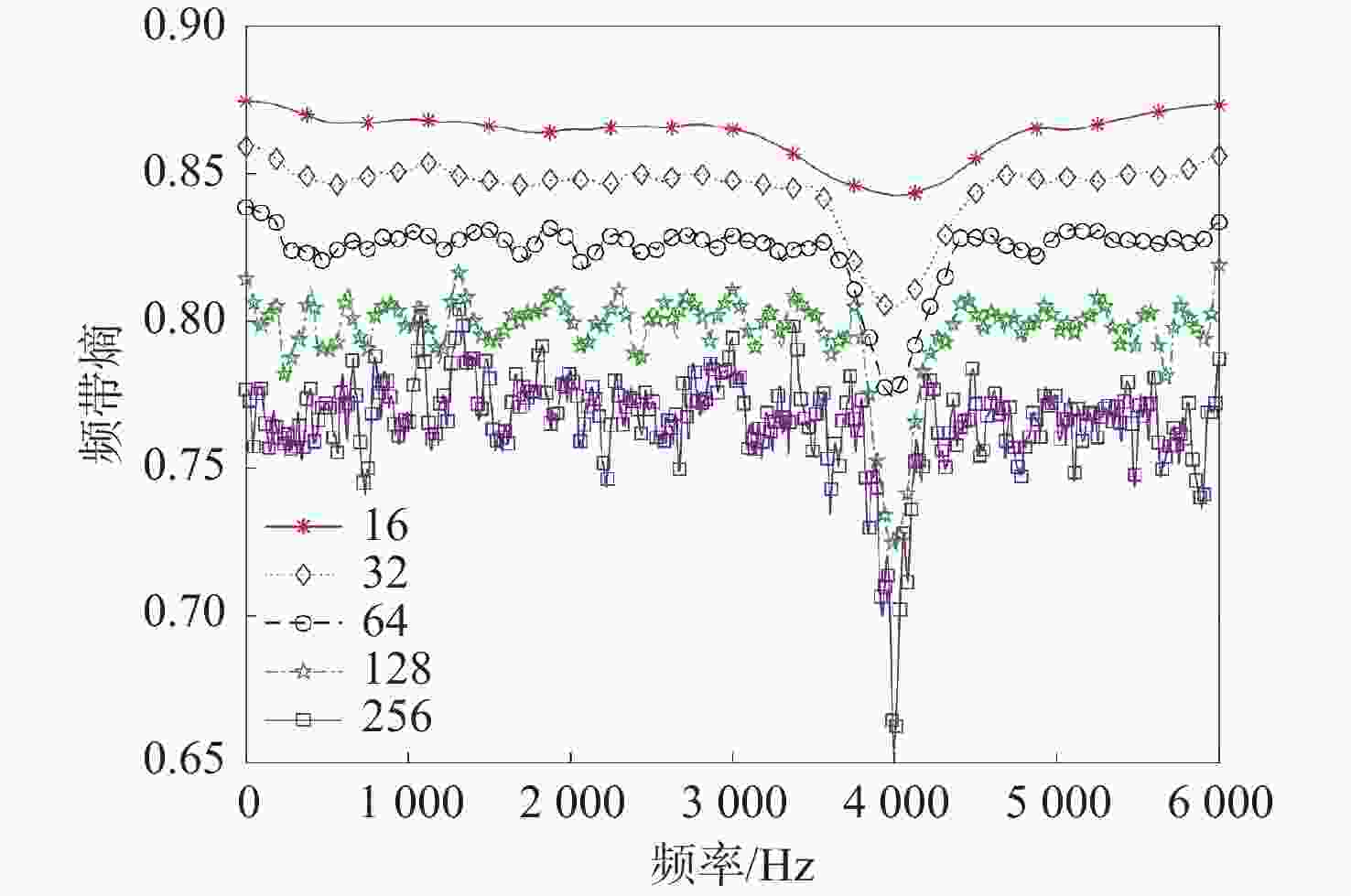

    图  7  原始信号不同窗长下的频带熵分析

    Figure  7.  Frequency band entropy analysis of original signal with different window lengths

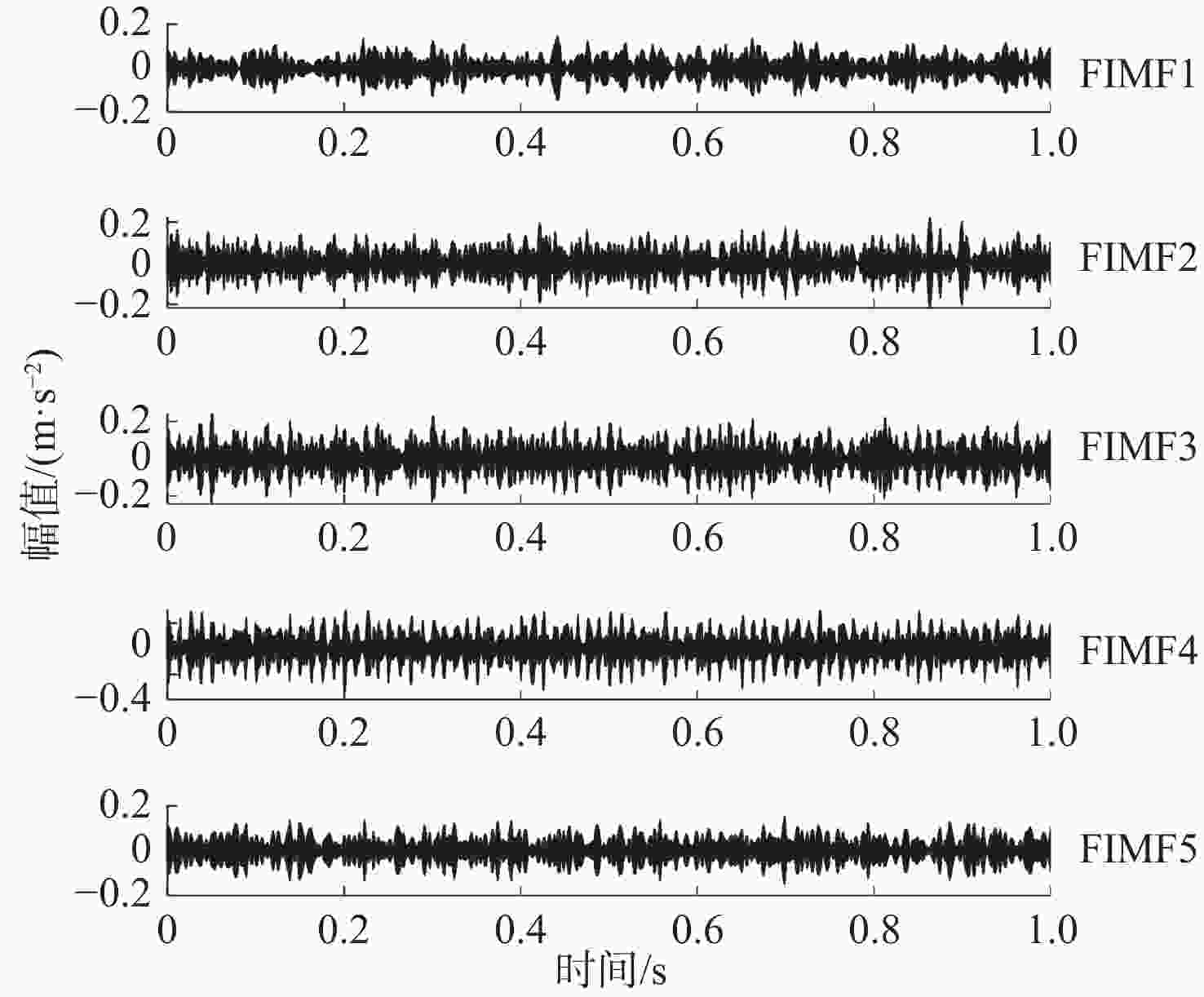

    图  8  敏感区间内的信号分解结果

    Figure  8.  Signal decomposition results in the sensitive interval

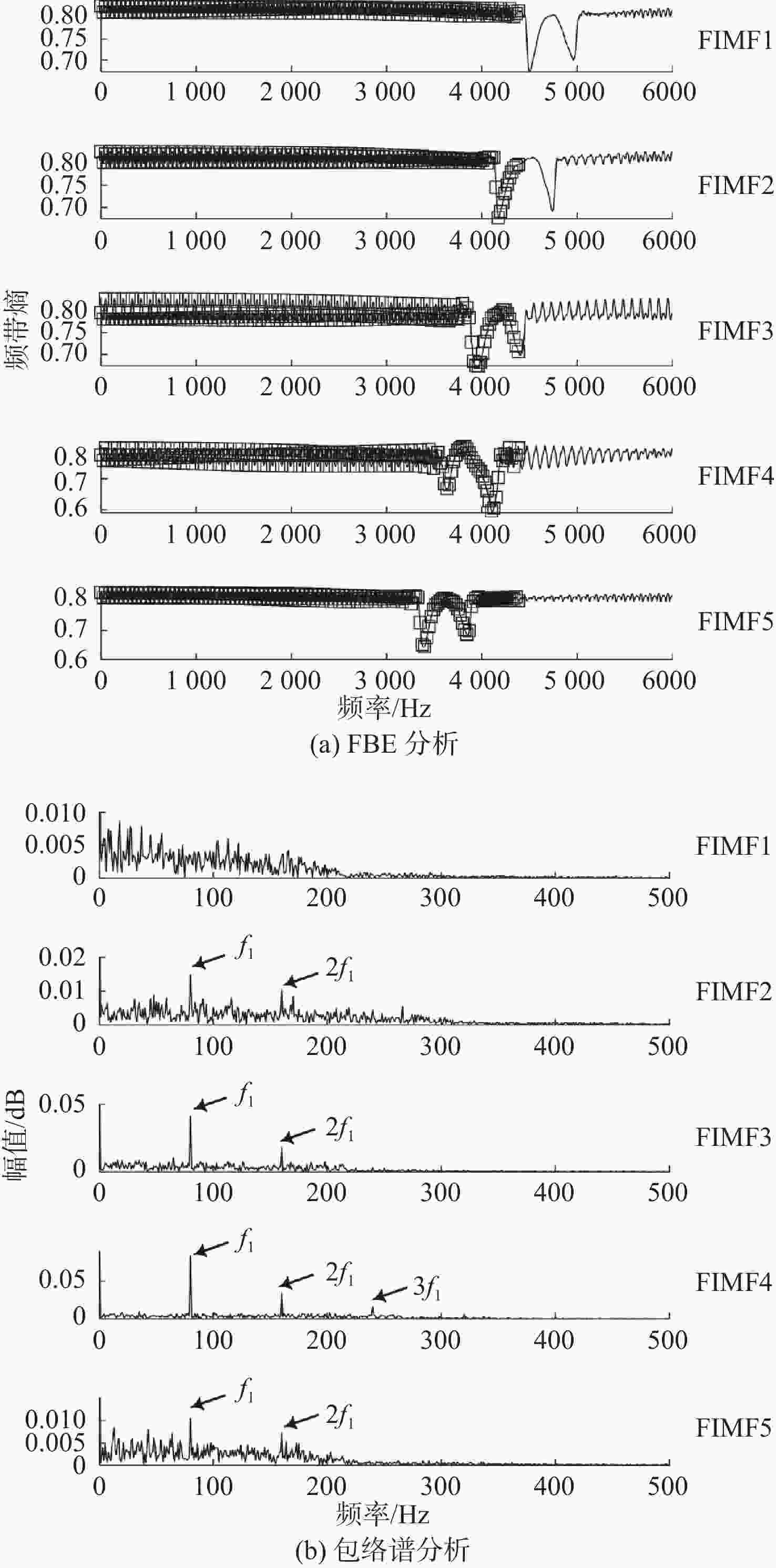

    图  9  FIMFs的FBE和包络谱分析

    Figure  9.  FBE and envelope spectrum analysis of FIMFs

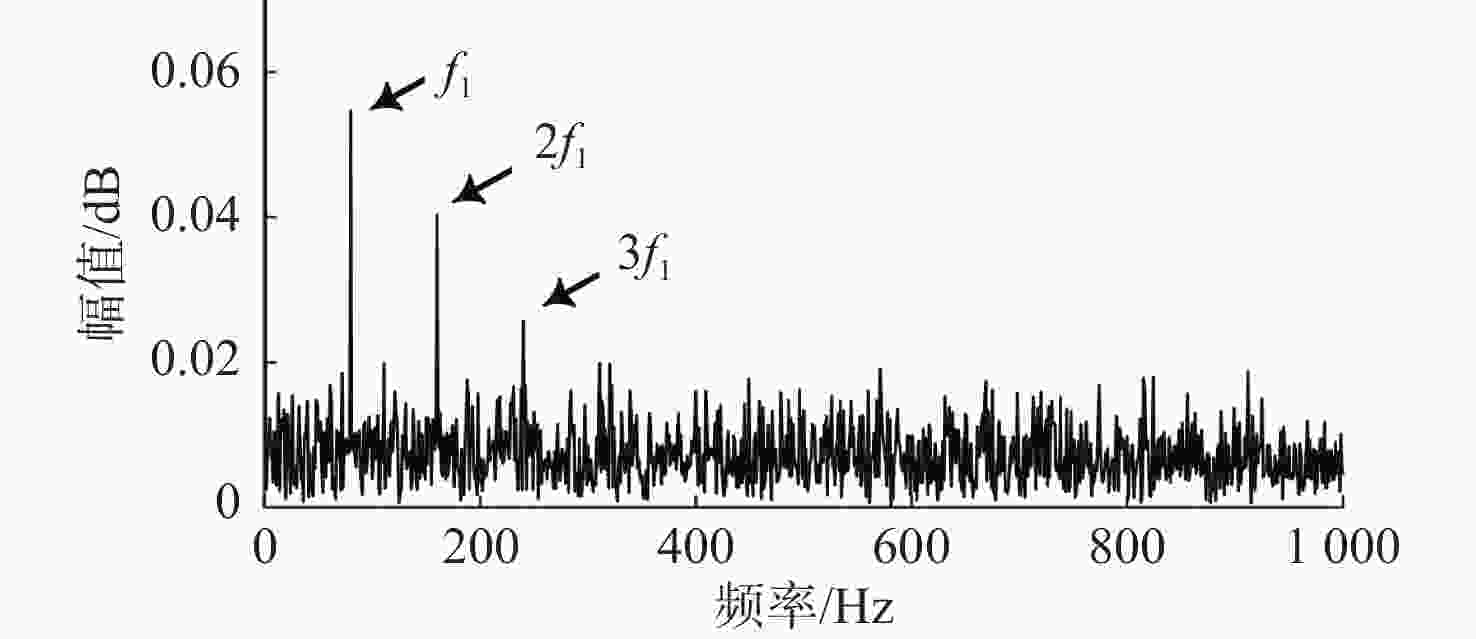

    图  10  小波包络谱的分析结果

    Figure  10.  Results of wavelet envelope spectrum analysis

    图  11  EMD分解和包络谱的分析结果

    Figure  11.  Results of EMD decomposition and envelope spectrum analysis

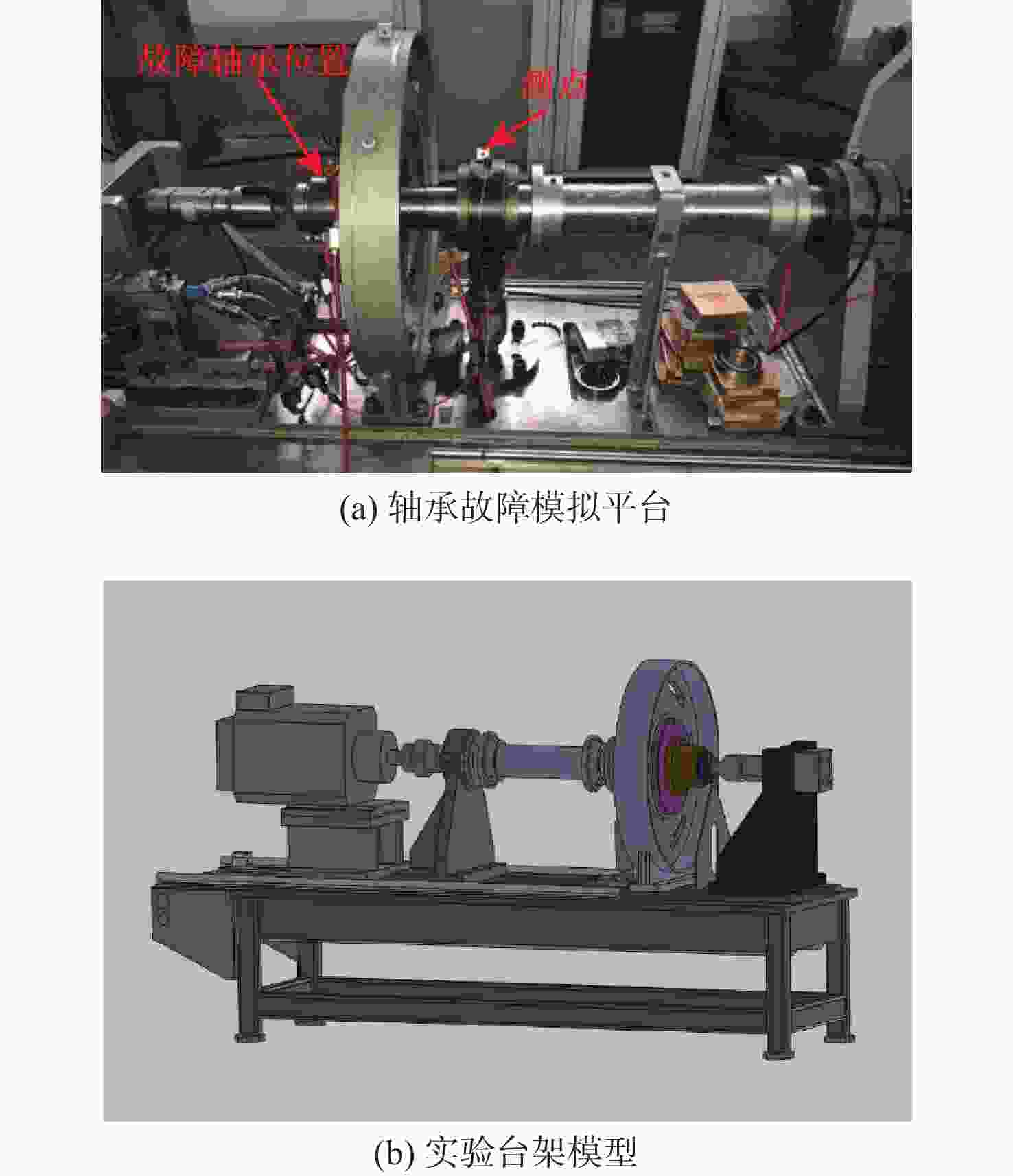

    图  12  轴承故障模拟平台与模型

    Figure  12.  Bearing fault simulation platform and model

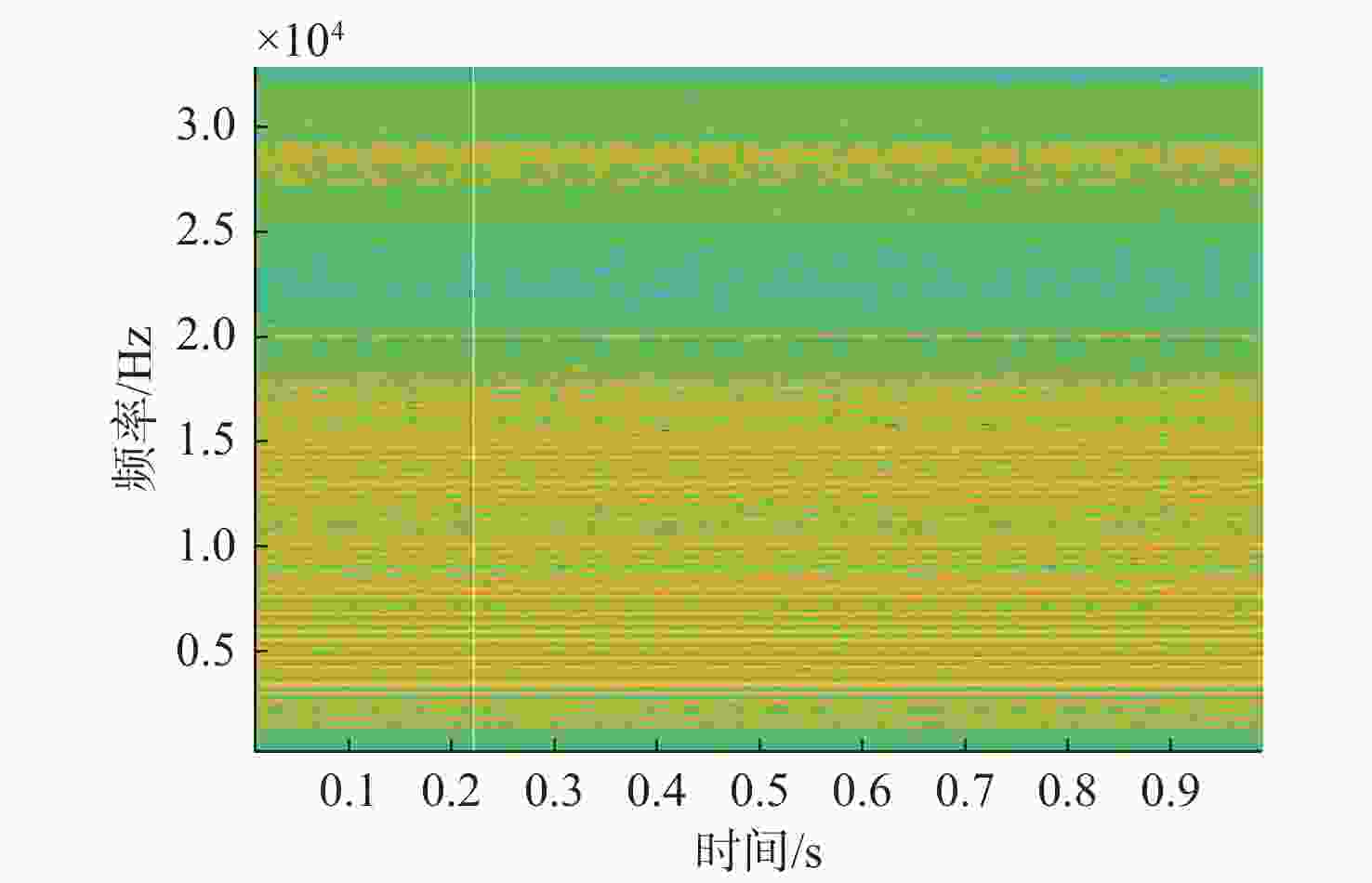

    图  13  轴承振动信号的短时傅里叶变换

    Figure  13.  Short time Fourier transform of bearing vibration signal

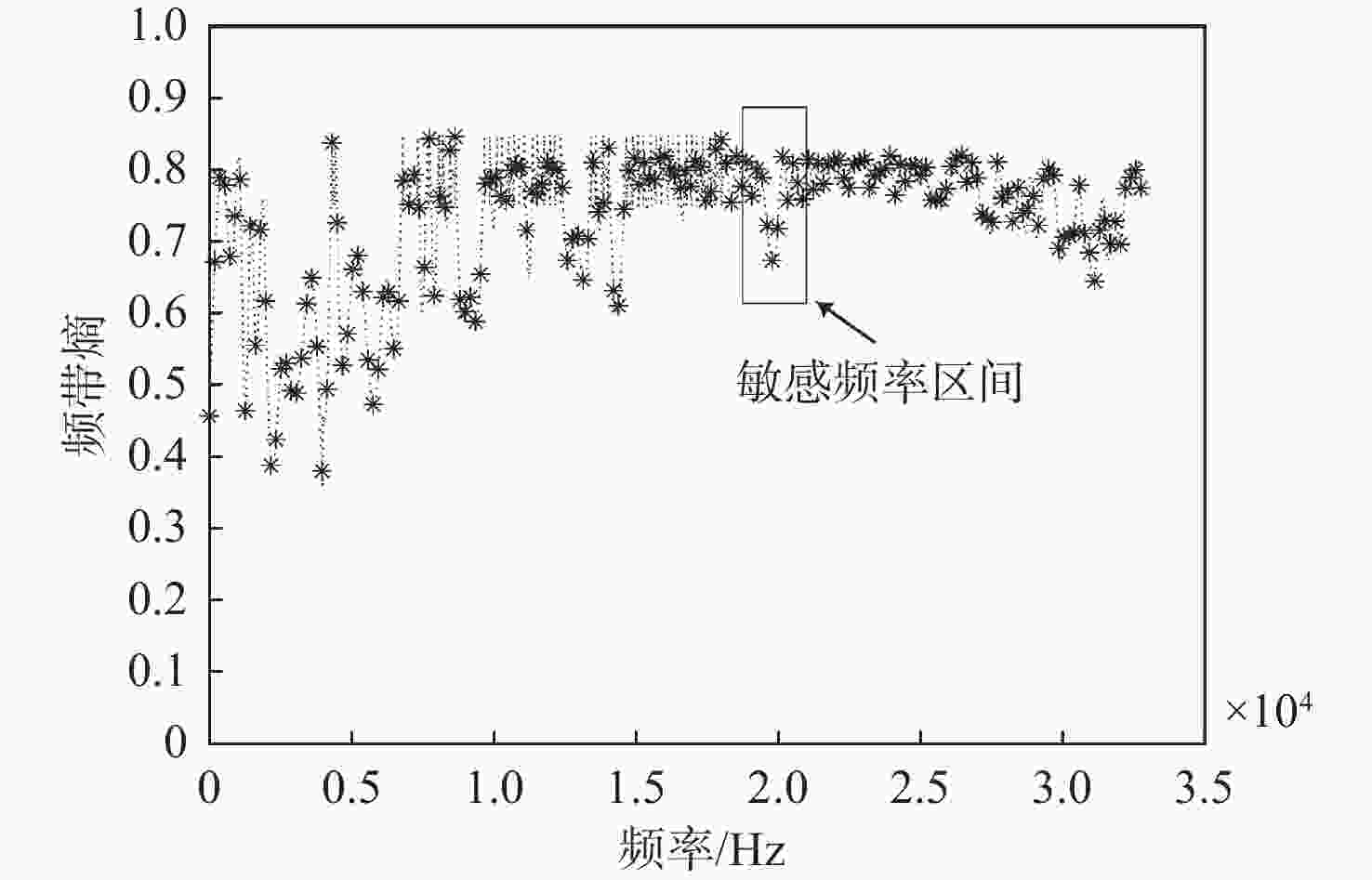

    图  14  轴承振动信号的频带熵分析

    Figure  14.  Frequency band entropy analysis of bearing vibration signal

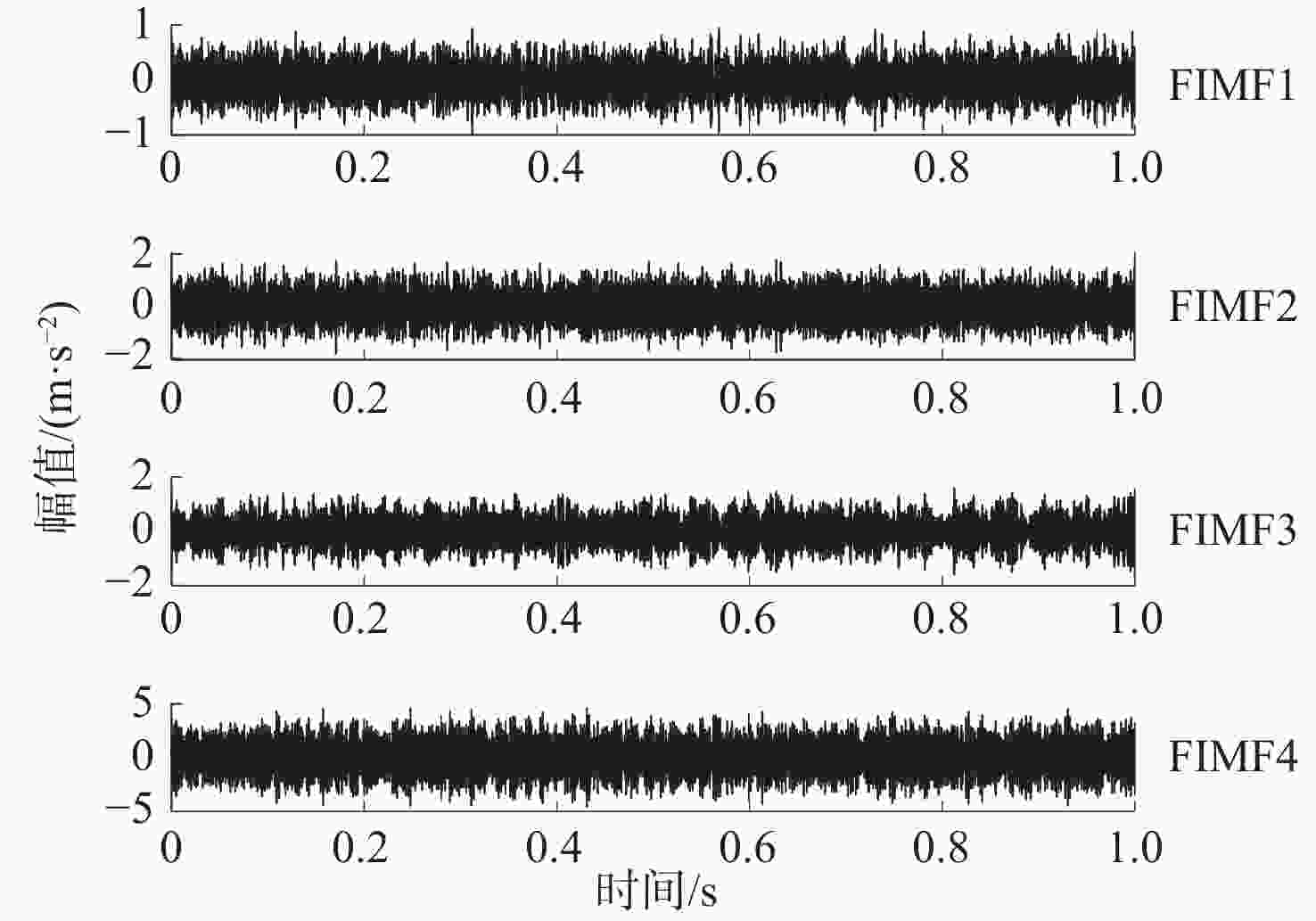

    图  15  敏感区间内的信号分解结果

    Figure  15.  Signal decomposition results in the sensitive interval

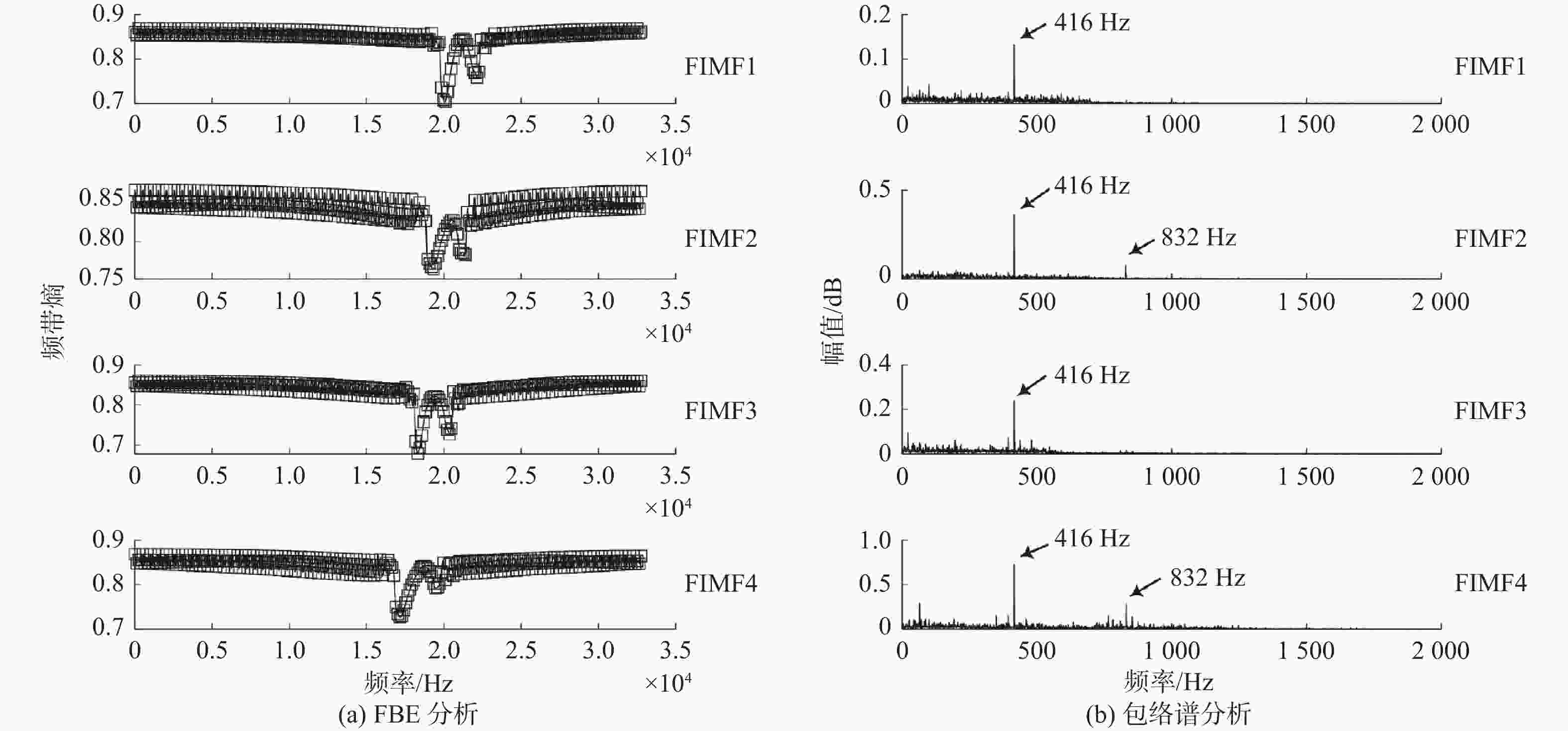

    图  16  FIMFs的FBE和包络谱分析

    Figure  16.  FBE and envelope spectrum analysis of FIMFs

  • [1] 丁康, 黄志东, 林慧斌. 一种谱峭度和Morlet小波的滚动轴承微弱故障诊断方法[J]. 振动工程学报, 2014, 27(1): 128–135. doi: 10.3969/j.issn.1004-4523.2014.01.018

    DING K, HUANG Z D, LIN H B. A weak fault diagnosis method for rolling element bearings based on Morlet wavelet and spectral kurtosis[J]. Journal of Vibration Engineering, 2014, 27(1): 128–135 (in Chinese). doi: 10.3969/j.issn.1004-4523.2014.01.018
    [2] ZHANG C L, LI B, CHEN B Q, et al. Weak fault signature extraction of rotating machinery using flexible analytic wavelet transform[J]. Mechanical Systems and Signal Processing, 2015, 64/65: 162–187. doi: 10.1016/j.ymssp.2015.03.030
    [3] 李恒, 张氢, 秦仙蓉, 等. 基于短时傅里叶变换和卷积神经网络的轴承故障诊断方法[J]. 振动与冲击, 2018, 37(19): 124–131.

    LI H, ZHANG Q, QIN X R, et al. Fault diagnosis method for rolling bearings based on short-time Fourier transform and convolution neural network[J]. Journal of Vibration and Shock, 2018, 37(19): 124–131 (in Chinese).
    [4] 程发斌, 汤宝平, 刘文艺. 一种抑制维格纳分布交叉项的方法及在故障诊断中应用[J]. 中国机械工程, 2008, 19(14): 1727–1731.

    CHENG F B, TANG B P, LIU W Y. A method to suppress cross-terms of wigner-ville distribution and its application in fault diagnosis[J]. China Mechanical Engineering, 2008, 19(14): 1727–1731 (in Chinese).
    [5] 何洋洋, 王馨怡, 董晶. 基于经验小波变换与谱峭度的船舶轴系故障特征提取方法[J]. 中国舰船研究, 2020, 15(增刊 1): 98-106.

    HE Y Y, WANG X Y, DONG J. Fault feature extraction method for marine shafting based on empirical wavelet transform-spectral kurtosis[J]. Chinese Journal of Ship Research, 2020, 15(Supp 1): 98-106 (in Chinese).
    [6] HUANG N E, SHEN Z, LONG S R, et al. The empirical mode decomposition and the Hilbert spectrum for nonlinear and non-stationary time series analysis[J]. Proceedings of the Royal Society of London, Series A: Mathematical, Physical and Engineering Sciences, 1998, 454(1971): 903–995. doi: 10.1098/rspa.1998.0193
    [7] WANG Y X, MARKERT R, XIANG J W, et al. Research on variational mode decomposition and its application in detecting rub-impact fault of the rotor system[J]. Mechanical Systems and Signal Processing, 2015, 60/61: 243–251. doi: 10.1016/j.ymssp.2015.02.020
    [8] 江志农, 魏东海, 张进杰, 等. 基于VMD和SVD的柴油机气门间隙异常特征提取研究[J]. 振动与冲击, 2020, 39(16): 23–30.

    JIANG Z N, WEI D H, ZHANG J J, et al. A study on valve clearance anomaly feature extraction of diesel engines based on VMD and SVD[J]. Journal of Vibration and Shock, 2020, 39(16): 23–30 (in Chinese).
    [9] RILLING G, FLANDRIN P. On the influence of sampling on the empirical mode decomposition[C]//2006 IEEE International Conference on Acoustics Speech and Signal Processing Proceedings. Toulouse, France: IEEE, 2006.
    [10] WU Z H, HUANG N E. Ensemble empirical mode decomposition: a noise-assisted data analysis method[J]. Advances in Adaptive Data Analysis, 2009, 1(1): 1–41. doi: 10.1142/S1793536909000047
    [11] SMITH J S. The local mean decomposition and its application to EEG perception data[J]. Journal of The Royal Society Interface, 2005, 2(5): 443–454. doi: 10.1098/rsif.2005.0058
    [12] 程军圣, 郑近德, 杨宇. 一种新的非平稳信号分析方法——局部特征尺度分解法[J]. 振动工程学报, 2012, 25(2): 215–220. doi: 10.3969/j.issn.1004-4523.2012.02.017

    CHENG J S, ZHENG J D, YANG Y. A nonstationary signal analysis approach—the local characteristic-scale decomposition method[J]. Journal of Vibration Engineering, 2012, 25(2): 215–220 (in Chinese). doi: 10.3969/j.issn.1004-4523.2012.02.017
    [13] 王振亚, 姚立纲, 戚晓利, 等. 参数优化变分模态分解与多域流形学习的行星齿轮箱故障诊断[J]. 振动与冲击, 2021, 40(1): 110–118, 126.

    WANG Z Y, YAO L G, QI X L, et al. Fault diagnosis of planetary gearbox based on parameter optimized VMD and multi-domain manifold learning[J]. Journal of Vibration and Shock, 2021, 40(1): 110–118, 126 (in Chinese).
    [14] SINGH P, JOSHI S D, PATNEY R K, et al. The Fourier decomposition method for nonlinear and non-stationary time series analysis[J]. Proceedings of the Royal Society of London, Series A: Mathematical, Physical and Engineering Sciences, 2017, 473(2199): 20160871.
    [15] 郑近德, 潘海洋, 程军圣, 等. 基于自适应经验傅里叶分解的机械故障诊断方法[J]. 机械工程学报, 2020, 56(9): 125–136. doi: 10.3901/JME.2020.09.125

    ZHENG J D, PAN H Y, CHENG J S, et al. Adaptive empirical Fourier decomposition based mechanical fault diagnosis method[J]. Journal of Mechanical Engineering, 2020, 56(9): 125–136 (in Chinese). doi: 10.3901/JME.2020.09.125
    [16] 彭畅. 旋转机械轴承振动信号分析方法研究[D]. 重庆: 重庆大学, 2014.

    PENG C. Vibration signal analysis of bearings in the rotating machinery[D]. Chongqing: Chongqing University, 2014 (in Chinese).
    [17] LIU T, CHEN J, DONG G M, et al. The fault detection and diagnosis in rolling element bearings using frequency band entropy[J]. Proceedings of the Institution of Mechanical Engineers, Part C: Journal of Mechanical Engineering Science, 2013, 227(1): 87–99. doi: 10.1177/0954406212441886
    [18] ANTONI J. Cyclic spectral analysis of rolling-element bearing signals: facts and fictions[J]. Journal of Sound and Vibration, 2007, 304(3/4/5): 497–529.
