压浪板对高速两栖平台运动稳定性影响的数值分析

杜尊峰 慕旭亮 李志军

杜尊峰, 慕旭亮, 李志军. 压浪板对高速两栖平台运动稳定性影响的数值分析[J]. 中国舰船研究, 2022, 17(3): 85–92 doi: 10.19693/j.issn.1673-3185.02331
引用本文: 杜尊峰, 慕旭亮, 李志军. 压浪板对高速两栖平台运动稳定性影响的数值分析[J]. 中国舰船研究, 2022, 17(3): 85–92 doi: 10.19693/j.issn.1673-3185.02331
DU Z F, MU X L, LI Z J. Numerical analysis of influence of stern flaps on motion and stability of high-speed amphibious platform[J]. Chinese Journal of Ship Research, 2022, 17(3): 85–92 doi: 10.19693/j.issn.1673-3185.02331
Citation: DU Z F, MU X L, LI Z J. Numerical analysis of influence of stern flaps on motion and stability of high-speed amphibious platform[J]. Chinese Journal of Ship Research, 2022, 17(3): 85–92 doi: 10.19693/j.issn.1673-3185.02331

压浪板对高速两栖平台运动稳定性影响的数值分析

doi: 10.19693/j.issn.1673-3185.02331
详细信息
    作者简介:

    杜尊峰,男,1984年生,博士,副教授。研究方向:高新船舶智能设计。E-mail:dzf@tju.edu.cn

    慕旭亮,男,1998年生,硕士生。研究方向:两栖平台水动力性能,计算流体力学。E-mail:18202614551@163.com

    李志军,男,1987年生,工程师。研究方向:两栖车设计与制造。E-mail:junzhili@163.com

    通信作者:

    杜尊峰

  • 中图分类号: U661.2+2;U674.78

Numerical analysis of influence of stern flaps on motion and stability of high-speed amphibious platform

知识共享许可协议
压浪板对高速两栖平台运动稳定性影响的数值分析杜尊峰,等创作,采用知识共享署名4.0国际许可协议进行许可。
  • 摘要:   目的  压浪板对两栖平台的水上性能具有显著影响,需探讨滑行状态下压浪板对高速两栖平台航行姿态及运动稳定性的影响规律。  方法  采用SST k-ω湍流模型以及重叠网格技术,对高速状态下两栖平台的静水直航进行CFD数值仿真计算,比较不同压浪板作用下平台姿态及稳定性的变化特性,并利用支持向量机(SVM)进行速度、重心位置等因素影响下平台运动稳定性边界的分类识别。  结果  结果显示,压浪板通过改变平台底面的压力分布,可减小航行纵倾角,并且压浪板的下旋角度越大,对姿态稳定性的影响越显著;在重心位置相同的情况下,可提高平台稳定状态下能够达到的最大航速。  结论  研究表明减摇附体的应用及运动稳定性的提高对两栖平台的高速化发展意义重大。

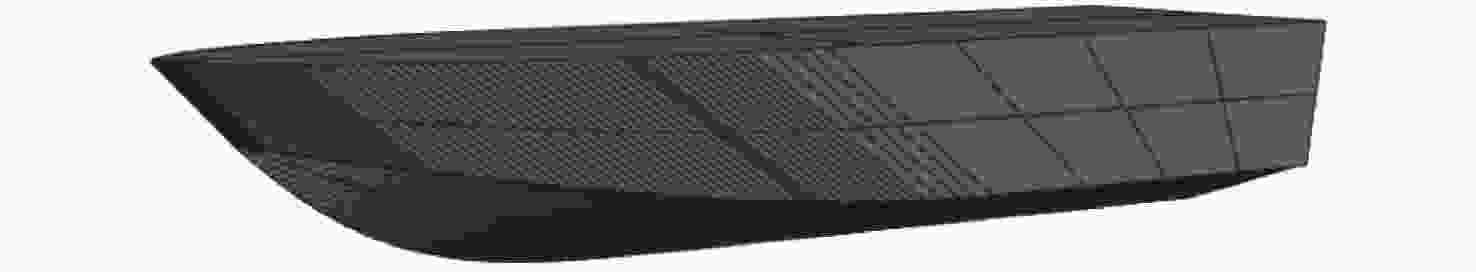

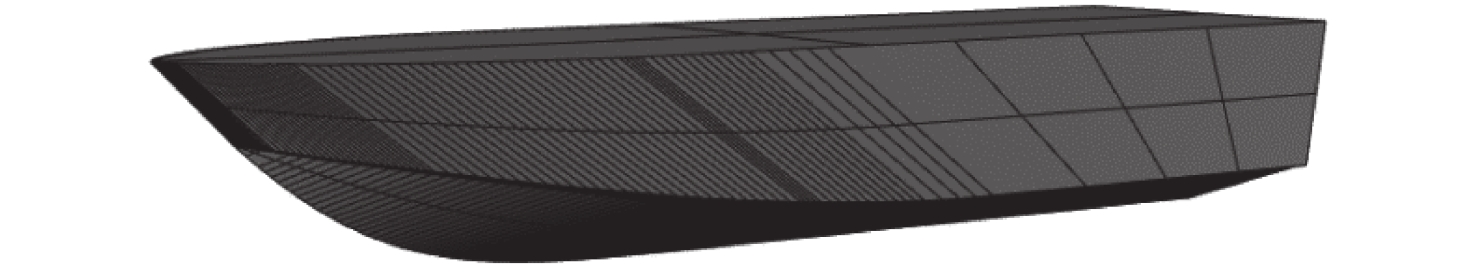

  • 图  1  GPPH滑行艇外形

    Figure  1.  Outline of GPPH planing craft

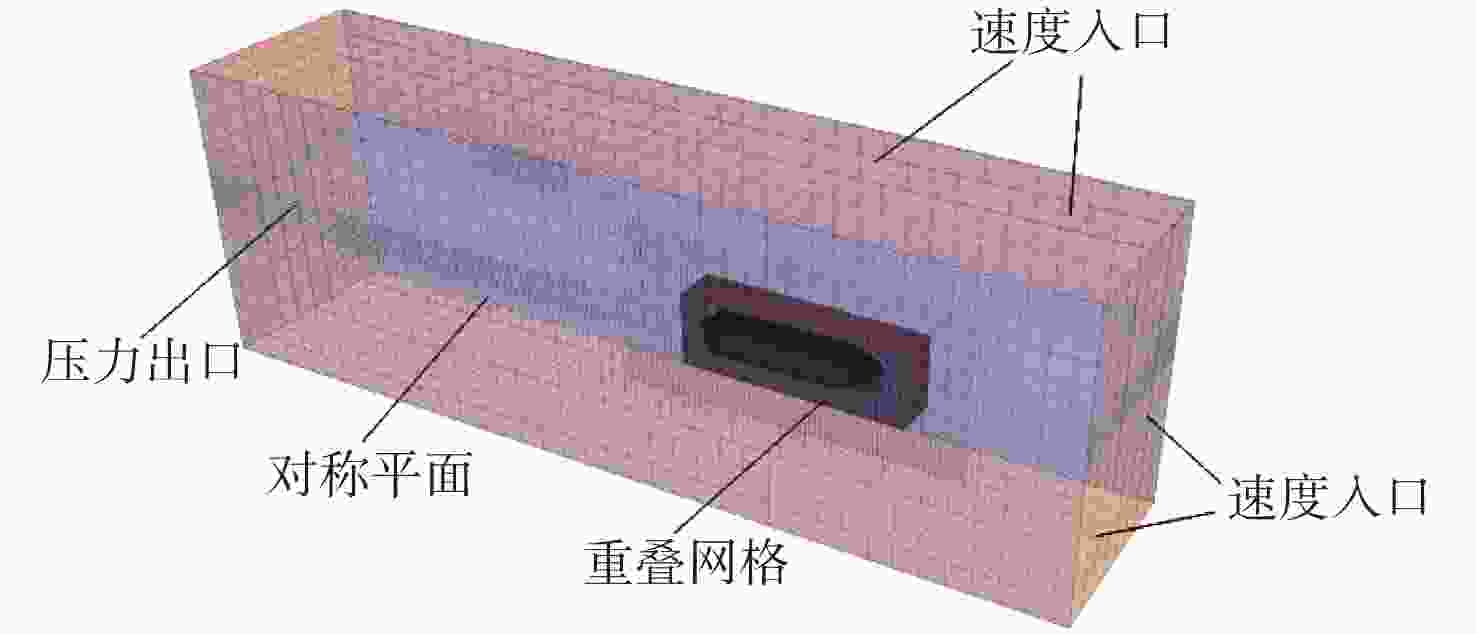

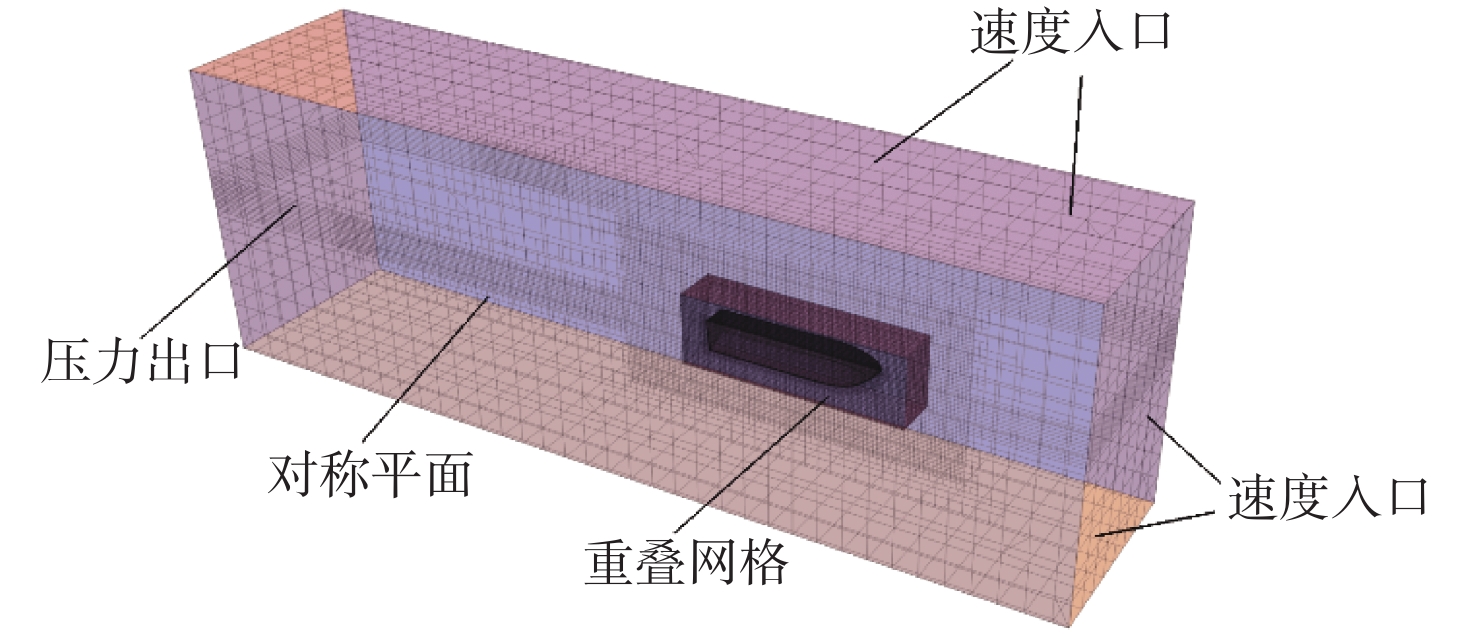

    图  2  网格与边界设置

    Figure  2.  Grid and boundary setting

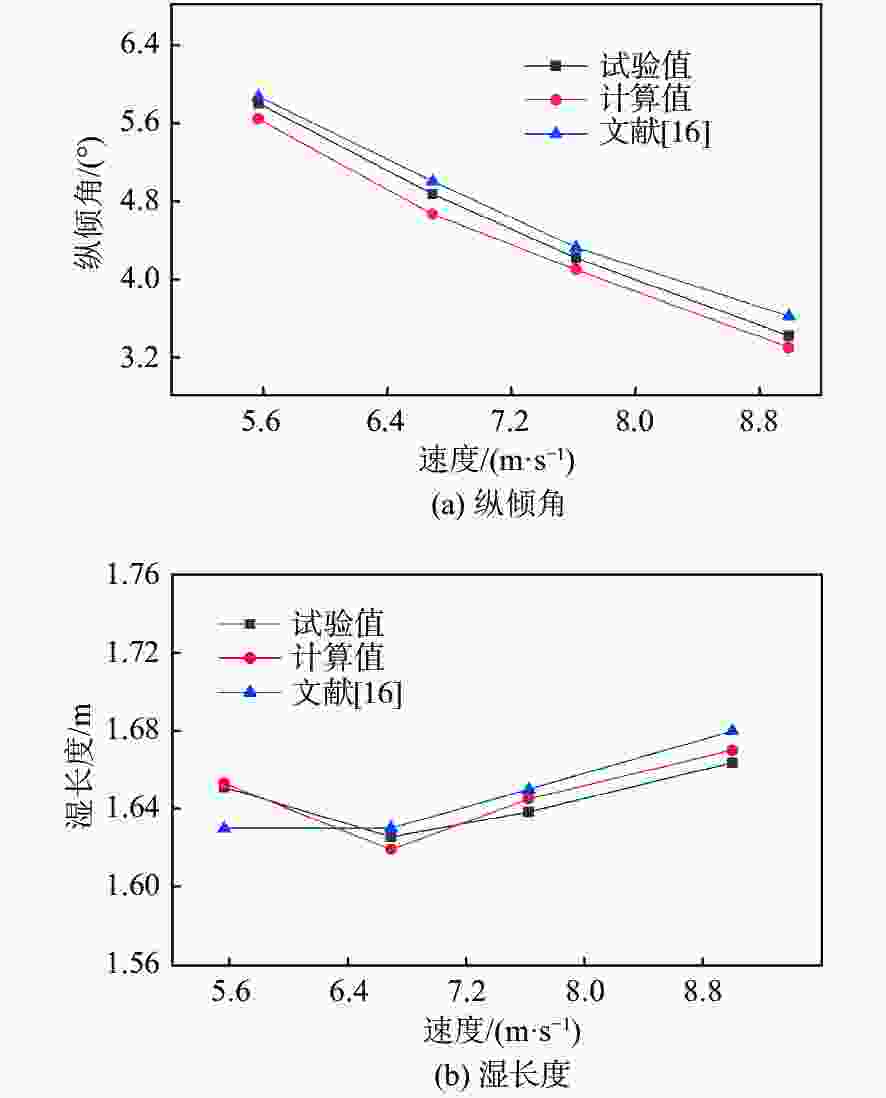

    图  3  数值方法验证结果

    Figure  3.  Verification results of numerical method

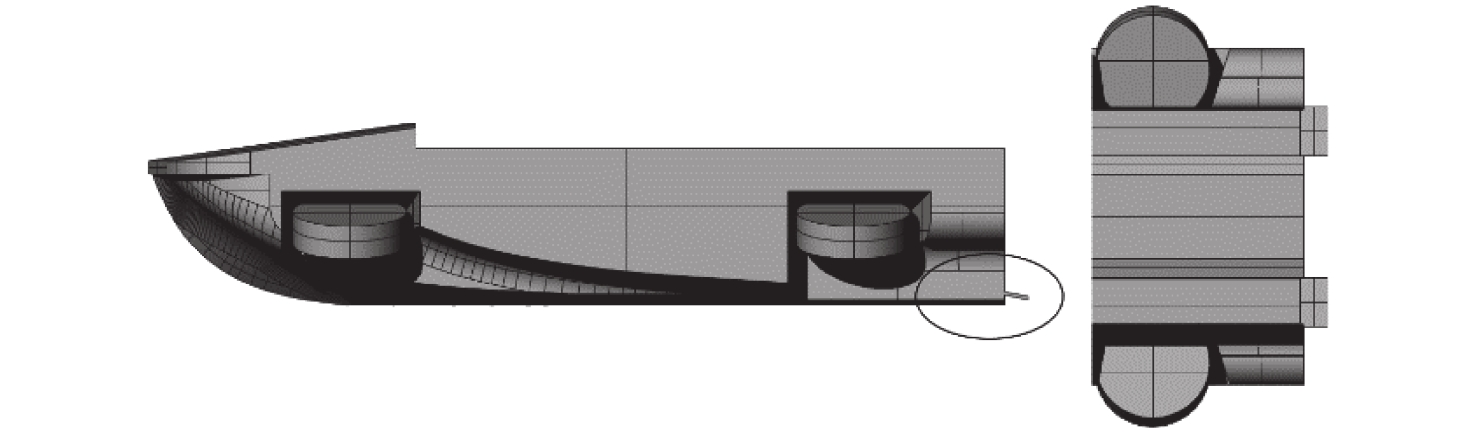

    图  4  两栖平台外形与艉压浪板示意图

    Figure  4.  Outline of amphibiou platform and stern flap

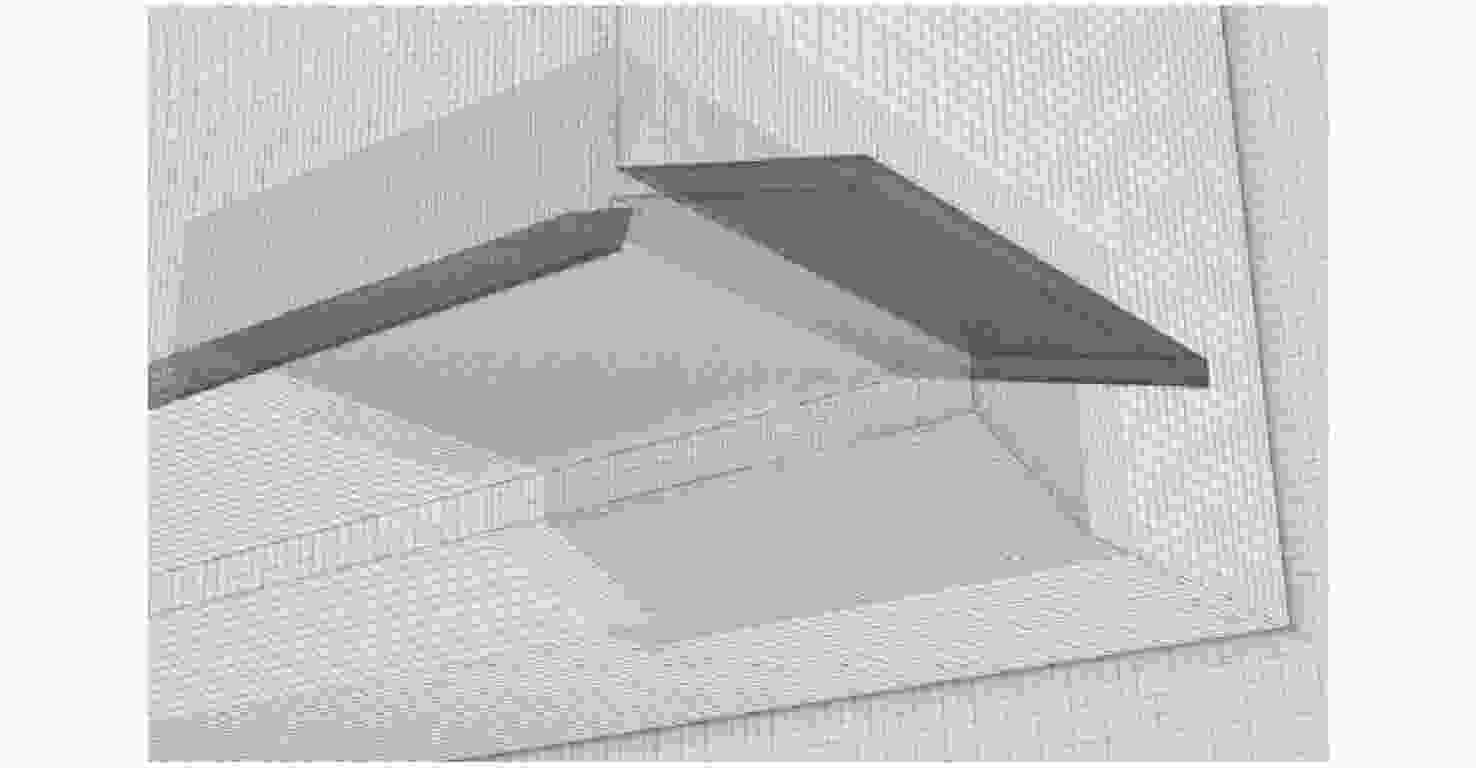

    图  5  压浪板网格划分

    Figure  5.  Grid division of stern flap

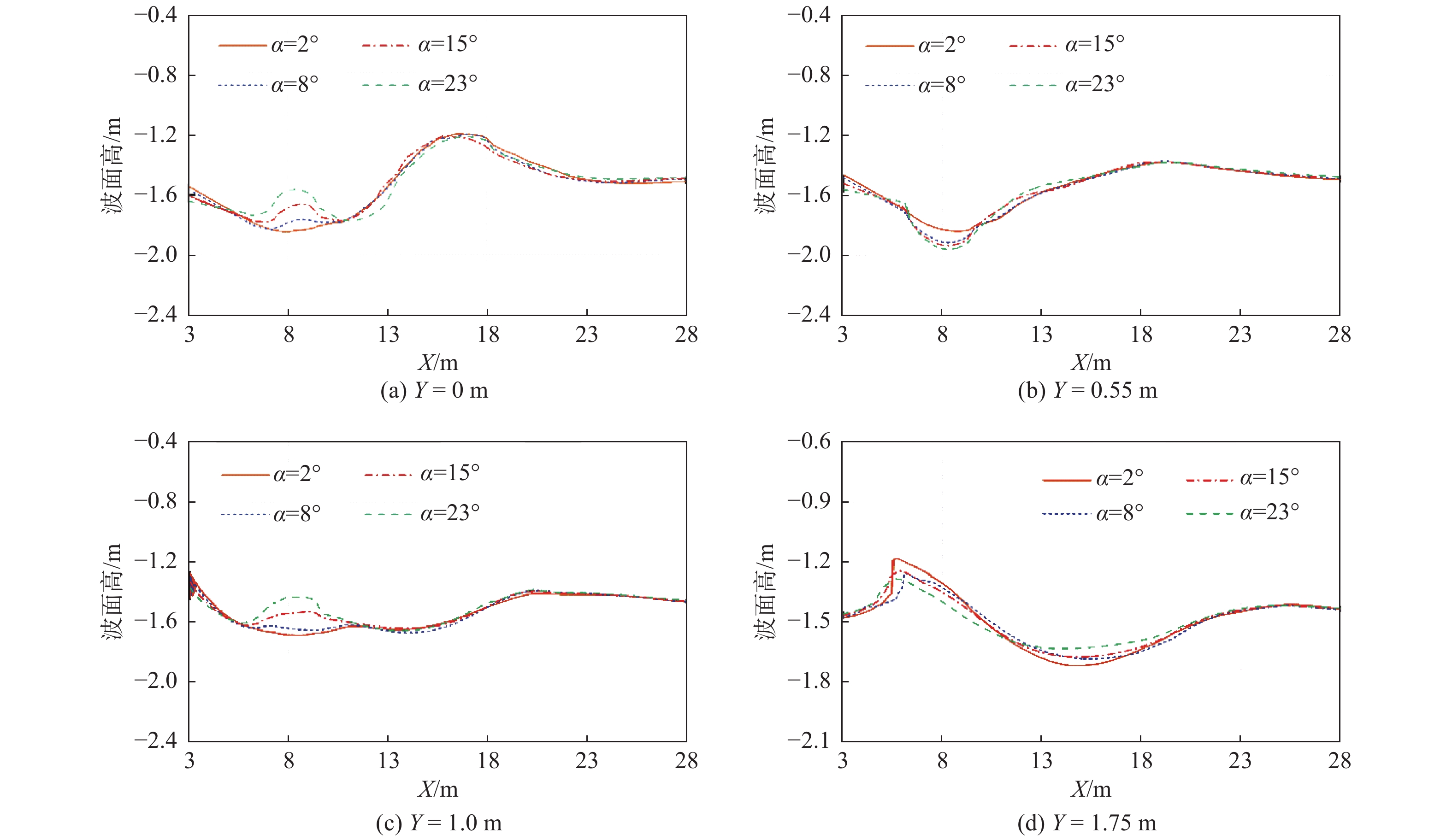

    图  6  不同纵剖面处波形比较

    Figure  6.  Comparison of wave height at different longitudinal sections

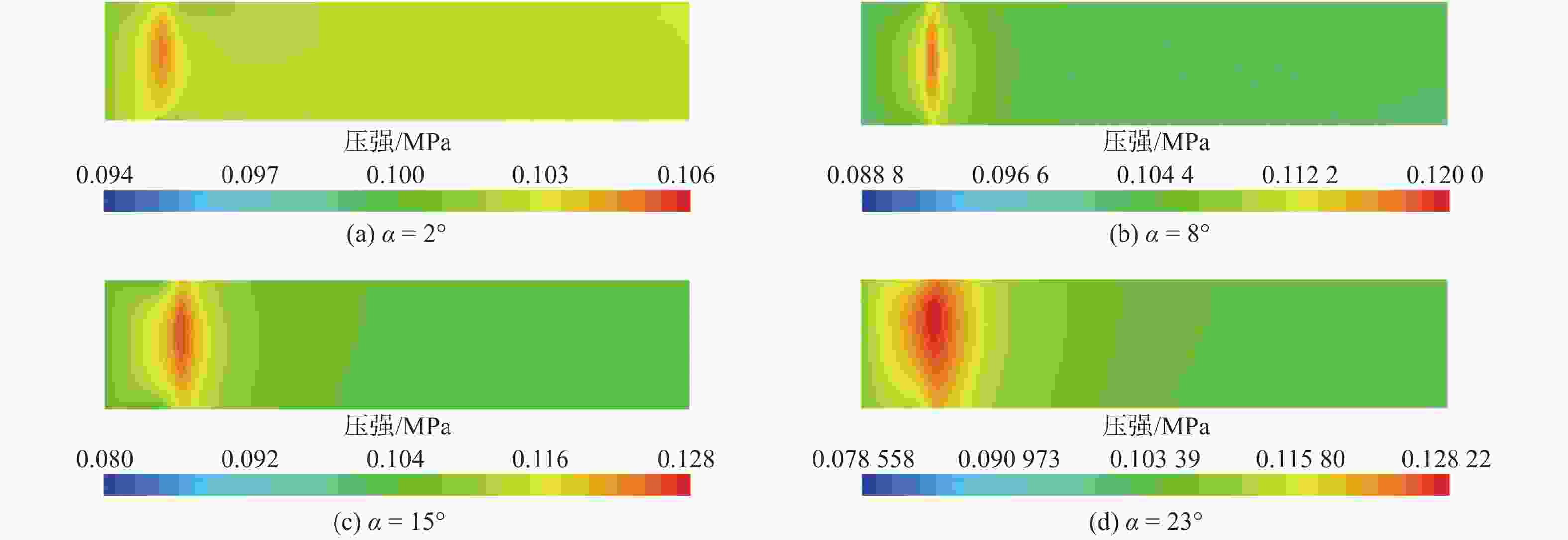

    图  7  不同压浪板下旋角时平台底部相对压力分布

    Figure  7.  Relative pressure distribution at the bottom of platform under different α

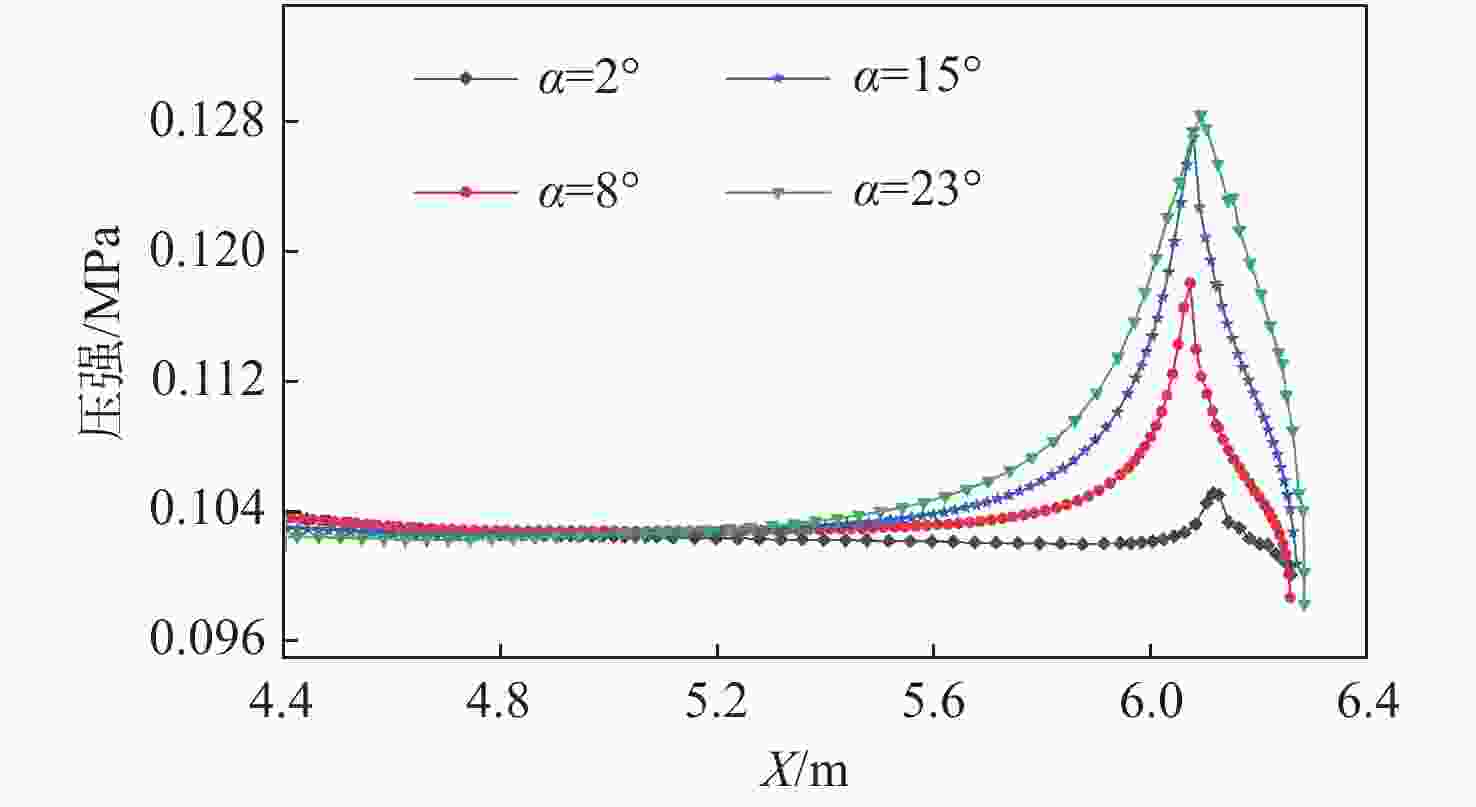

    图  8  不同下旋角度时压浪板及平台纵剖线相对压力比较 (v = 22 kn)

    Figure  8.  Relative pressure on longitudinal section of platform and stern flap under different α (v = 22 kn)

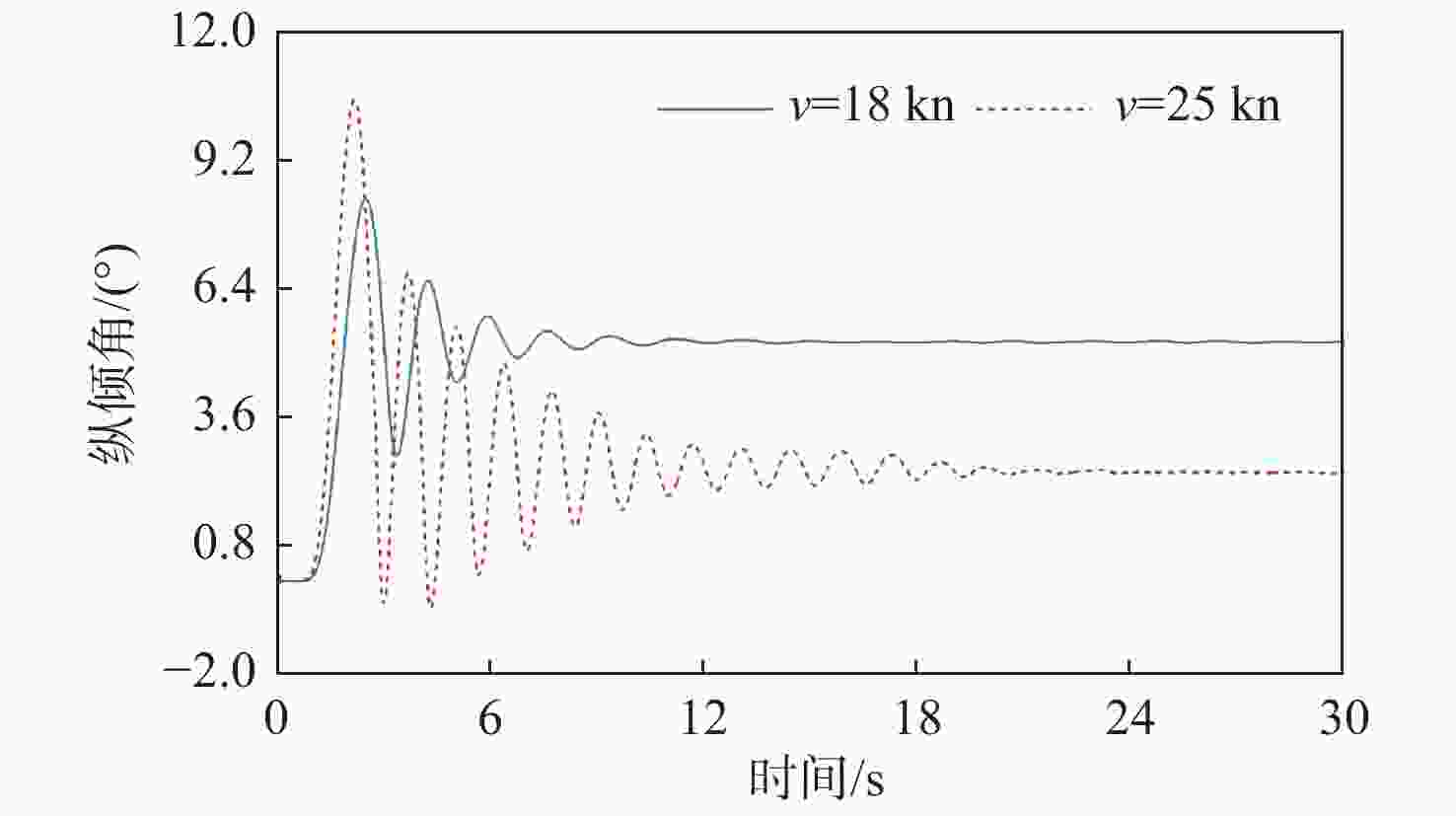

    图  9  不同航速下的姿态收敛情况 (α=15°,r=0.40)

    Figure  9.  Attitude convergence at different speeds (α=15°, r=0.40)

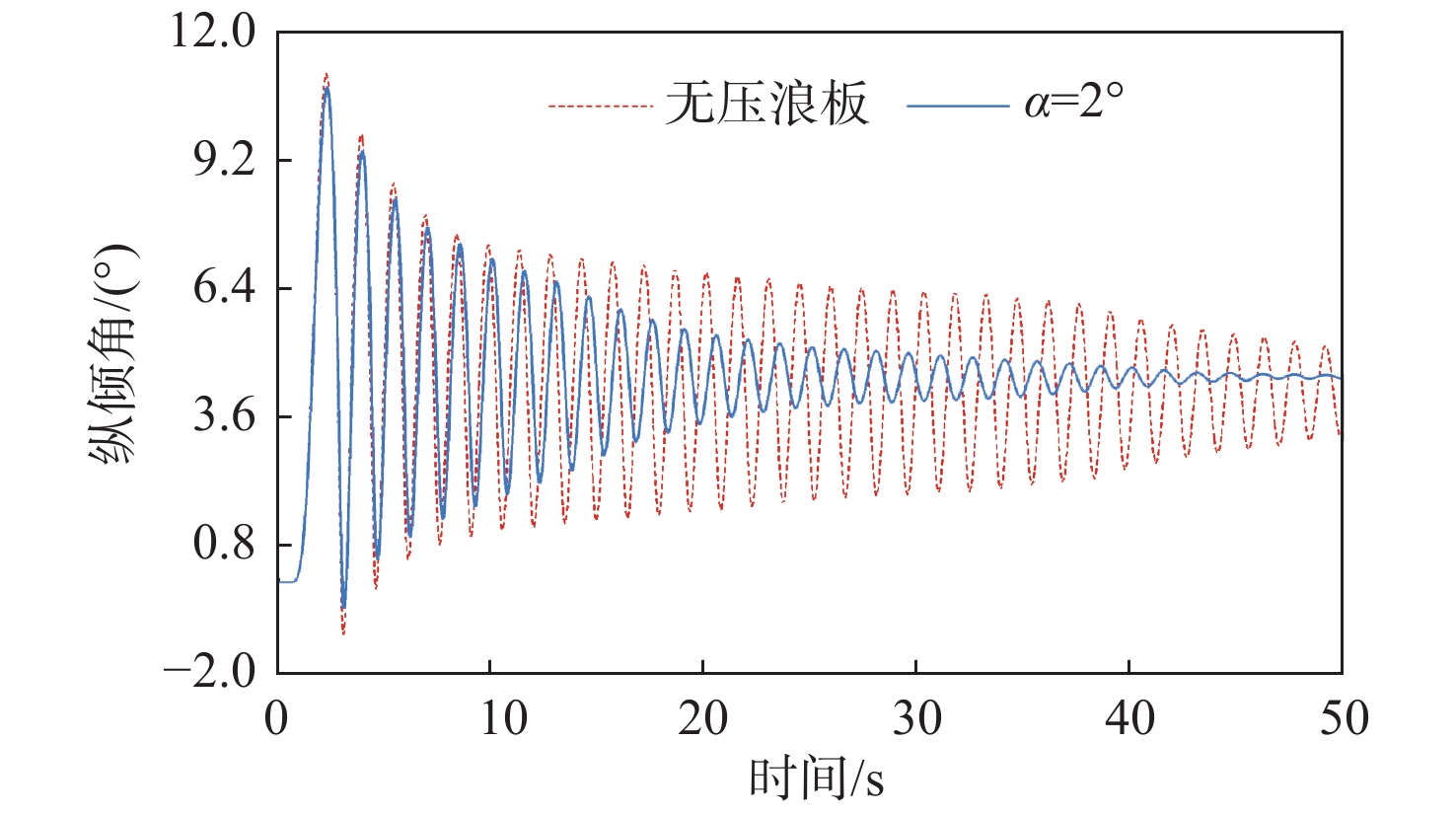

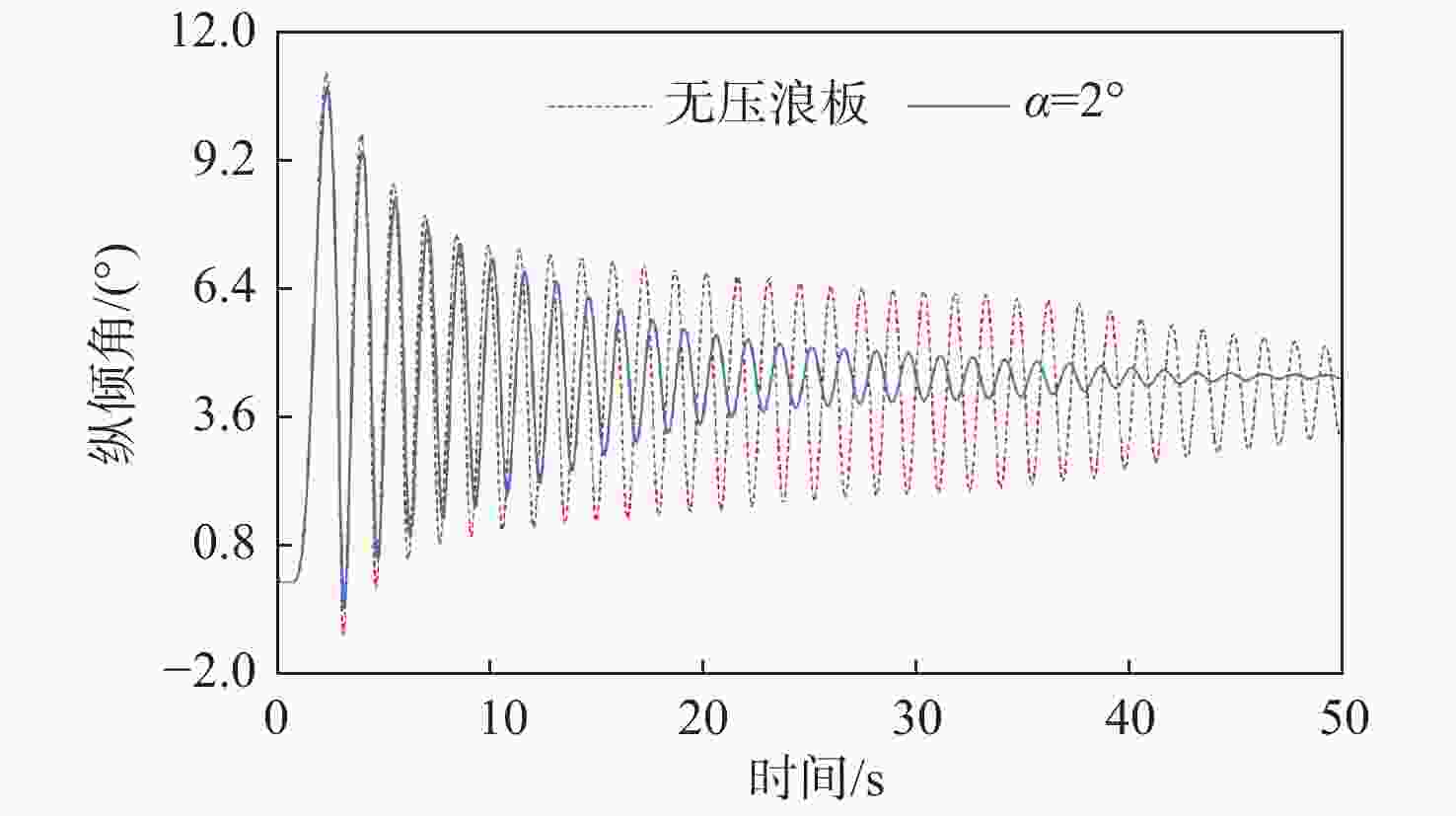

    图  10  不同压浪板状态下姿态收敛情况 (v=22 kn,r = 0.43)

    Figure  10.  Attitude convergence at different stern flaps (v=22 kn, r = 0.43)

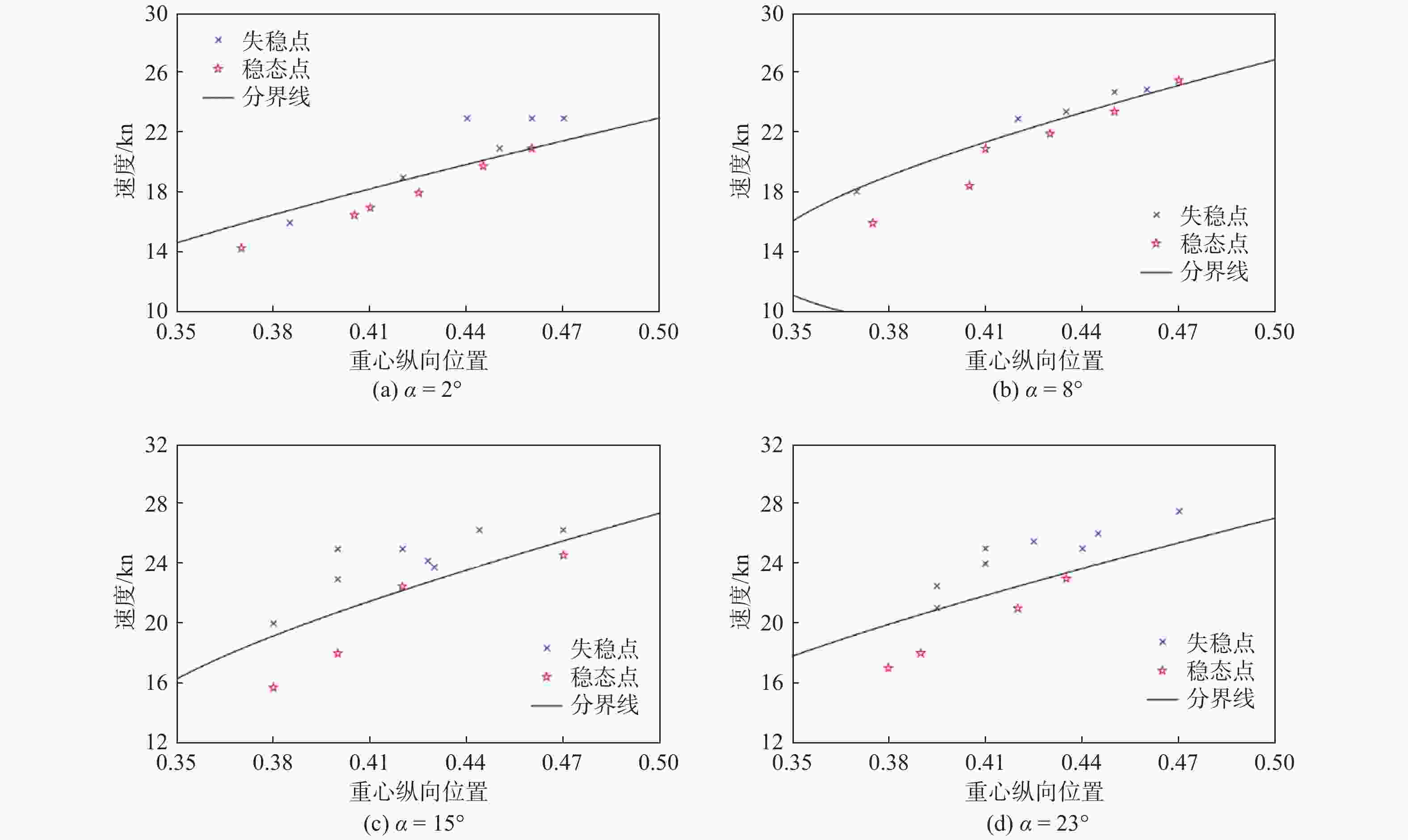

    图  11  不同下旋角压浪板作用时的稳定性分类结果

    Figure  11.  Stability classification results at different α

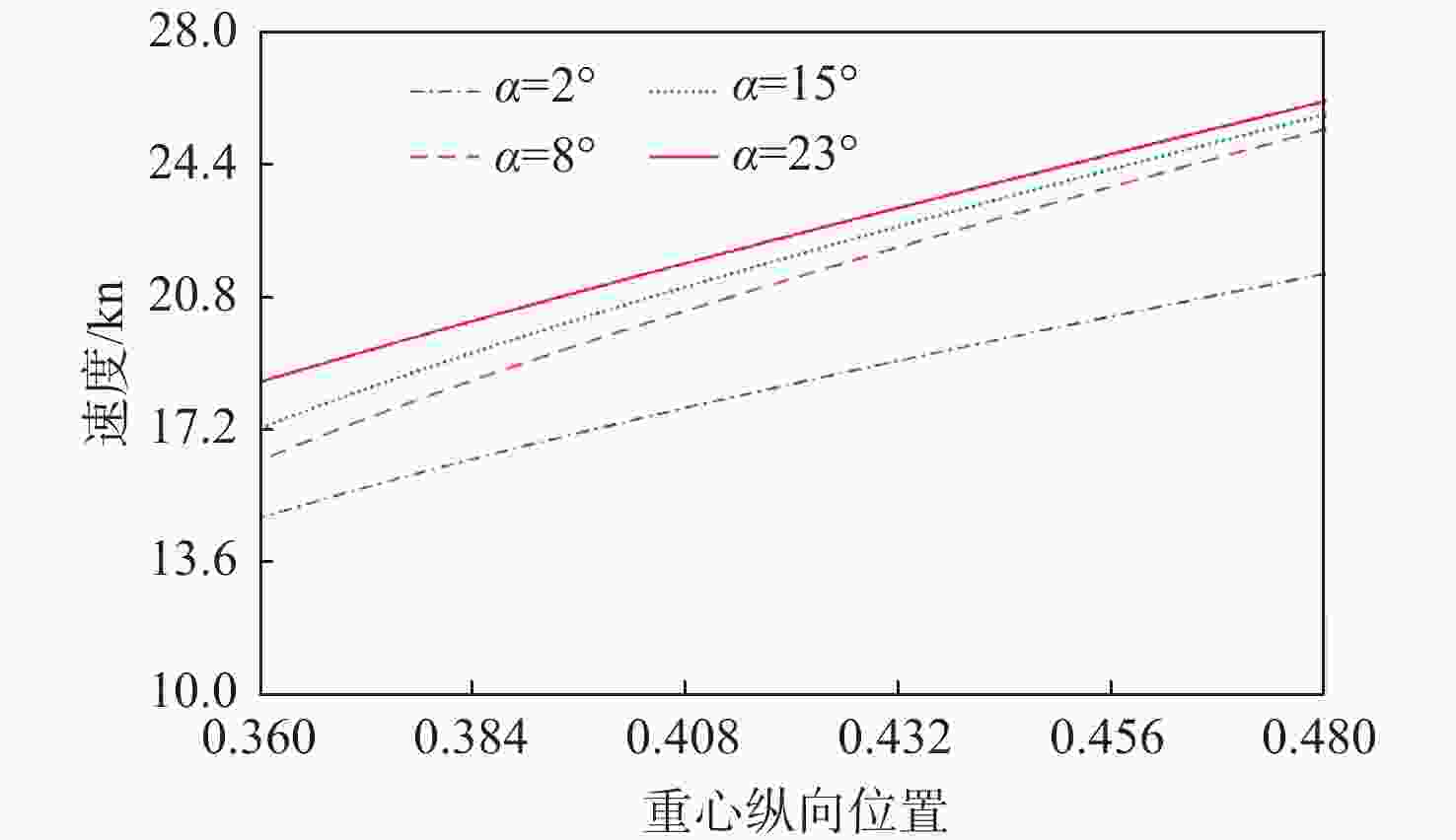

    图  12  不同下旋角压浪板作用时的平台稳定性边界

    Figure  12.  Boundary of platform stability at different α

    表  1  GPPH滑行艇结构参数

    Table  1.   Parameters of GPPH planing craft

    参数数值
    艇长Ll /m2.410
    艇宽Bl /m0.630
    质量ml /kg101.250
    重心距船艉距离xl /m0.844
    重心距基线高度zl /m0.138
    纵向转动惯量Iyy /(kg·m2)20.940
    静浮吃水Dl /m0.148
    下载: 导出CSV

    表  2  两栖平台参数

    Table  2.   Parameters of amphibious platform

    参数数值
    总长L/m6.00
    水线长LWL/m5.69
    型宽B/m2.36
    吃水D/m0.42
    排水量Δ/t3.20
    重心距底板高度zg /m0.30
    压浪板长度/m0.15
    压浪板宽度/m0.34
    下载: 导出CSV

    表  3  网格敏感性结果

    Table  3.   Results of grid sensitivity

    表面网格尺寸/mmα=8°α=23°
    纵倾角/(°)升沉/m纵倾角/(°)升沉/m
    144.360.3181.660.254
    204.230.3161.550.256
    283.890.3191.540.256
    下载: 导出CSV

    表  4  22 kn速度下的纵向运动结果

    Table  4.   The results of longitudinal motion at a speed of 22 kn

    α/(°)纵倾角/(°)升沉/m
    无压浪板4.610.34
    24.500.33
    84.230.31
    152.950.28
    231.550.26
    下载: 导出CSV
